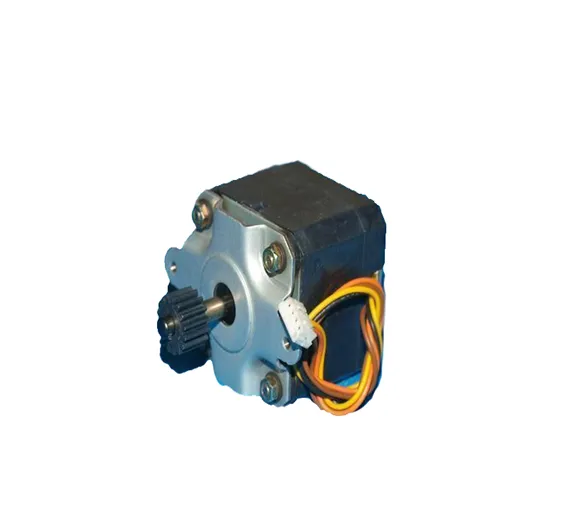

Nema17 STEPPER MOTOR BI POLAR 4 WIRES ML17A3

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: TMD,Th5,KRT505

Rs.500 Rs. 625

Nema17 4 wire Bipolar Stepper Motor us very useful in the various application especially which demands low speed with high precision. Many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters etc. Nema17 4 wire Bipolar Stepper Motor is High precision 4–wire bipolar stepper motor, size in Nema 17, 1.8 deg. step angle (200 … It is one of most parameters for the stepper motor

Features:

Stepper motor is known by its property to convert a train of input pulses into a precisely defined increment in the shaft position. This is a high-quality motor that can be used for a long time without stuck. It has a quite stable performance during work and will not lose a step. Low noise and big torque, this is a great choice if you need a stepper motor. Stepper motor can be widely used for 3D printer, CNC engraving machine, etc.

Specifications:

  1. Step Angle: 1.8°
  2. Phase Current: 1.8A
  3. Phase Resistance: 1.5Ohm
  4. Phase Inductance: 2.8mH
  5. Holding Torque: 40N.cm
  6. Braking Torque: 2.2N.cm
  7. Rotor Inertia: 54g.cm⊃2;
  8. Wire: 4(Blue, green, Black, red)
  9. Max. Temperature Rise: 80℃ (rated current, 2 phase on)
  10. Operating Temperature: -20℃~+70℃
  11. Insulation Resistance: 100 MΩ Min. , 500VDC
  12. Radial Clearance: 0.02Max. (450g-load)
  13. Axial Clearance: 0.08Max. (450g-load)
  14. Max. Radial Pressure: 75N (20mm from the flange)
  15. Max. Axial Pressure: 15N
