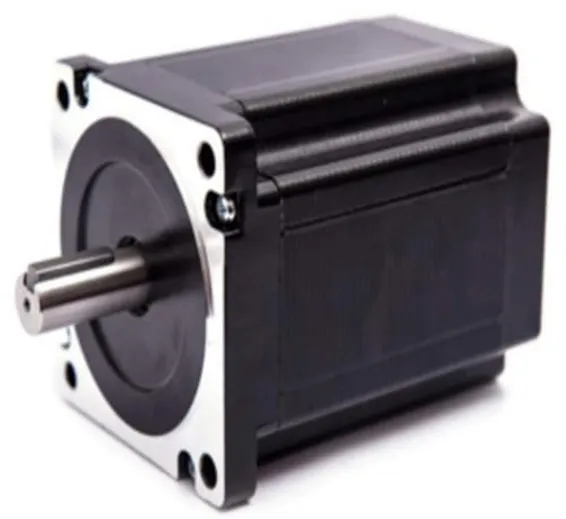

Nema 34 100mm Stepper Motor

Condition: New
Availability: In Stock
Advance Payment Only
Share:     Faceook Twitter

SKU: RAWLIXNem

Rs.14500 Rs. 18125

Nema 34 100mm Stepper Motor is a high torque hybrid bipolar stepping motor with a 3.4×3.4 inch faceplate. Nema 34 100mm Stepper Motor, Hybrid stepper has the combination of the features of the Variable Reluctance Stepper Motor and Permanent Magnet Stepper Motor. This motor has a step angle of 1.8 deg., this means that it has 200 steps per revolution and for every step, it will cover 1.8°. This NEMA 34 is a 2-Phase motor with 4 wires. Compatible controllers for this motor are CW230, CW250 and CW860.

Features of Nema 34 100mm Stepper Motor:

  1. High performance, low price
  2. Supply voltage from 24VDC
  3. Overvoltage, under voltage, overcorrect, phase short circuit protection
  4. Offline command input terminal
  5. Motor torque is related to speed, but not related with step/revolution
  6. High start speed
  7. High holding torque under high speed

Specifications of Nema 34 100mm Stepper Motor:

  1. Body Length: 100mm
  2. Shaft Length: 30mm
  3. Shaft Size: 10mm
  4. Ampere: 6AMP

Stepper Motor Applications:

  1. CNC machines
  2. Precise control machines
  3. 3D printer/prototyping machines (e.g. RepRap)
  4. Laser cutters
  5. Pick and place machines

Package Includes:

1 x Nema 34 100mm Stepper Motor
