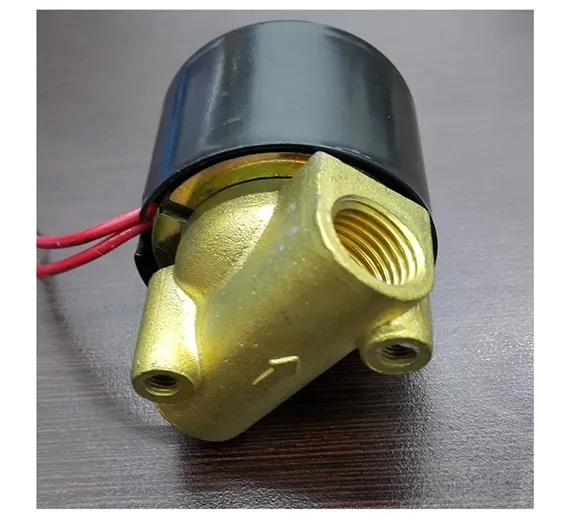

1 Inch 24V DC Solenoid Valve Coil In Pakistan

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 2943,TMD5,Th2,KRT

Rs.3000 Rs. 3750

A solenoid valve is an electromechanically operated valve. Solenoid valves differ in the characteristics of the electric current they use, the strength of the magnetic field they generate, the mechanism they use to regulate the fluid, and the type and characteristics of fluid they control

Features:

  • High-quality replacement part for use with pipelines in water, air, and diesel applications
  • Acting Motion: Direct action
  • Medium: Air, water, diesel
  • Operating Type: Directly driven
  • State: Normally closed
  • Supply Voltage: 24V DC
  • Pipe Size: 1″
  • Operating Pressure: 0kg/cm2 – 10kg/cm2
  • Fluid Temperature: -5-80?
  • CV: 24
  • Operating Viscosity: Under 20CST
  • Installation: Fluid direction should be as the arrow shows
  • Valve Body: Brass
  • Oil Seal Material: NBR

Package Includes:

1 x 1 Inch 24V DC Solenoid Valve Coil
