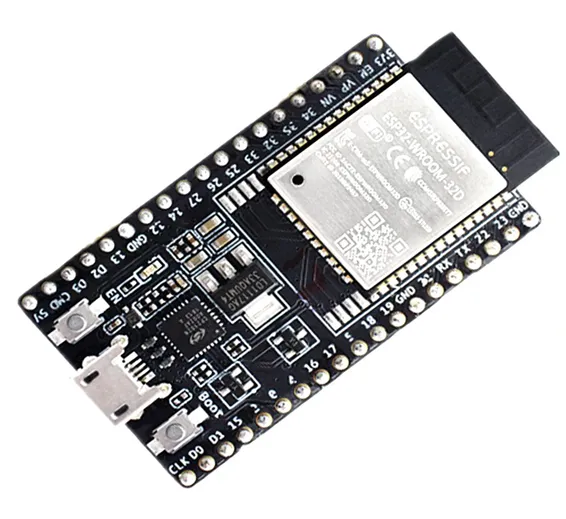

Espressif ESP32 WROOM 32D Development Board
ESP & IoT Boards

Espressif ESP32 WROOM 32D Development Board

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: B232,IMP5,Th3 KRT 130

Rs.1450 Rs. 1813

Jump right into what matters; Start prototyping with Espressif flagship SoC, ESP32. ESP32-DevKitC is a low-footprint, breadboard-friendly, minimum system development board that is powered by the ESP32-WROOM-32D module.

Features:

  • Amazon-Qualified Device
  • ESP32-DevKitC is an AWS-qualified development board. In addition to Espressif’s own ESP-IDF SDK, you can use Amazon FreeRTOS on ESP32-DevKitC. Amazon FreeRTOS provides out-of-the-box connectivity with AWS IoT, AWS Greengrass, and other AWS services.
  • New and Powerful
  • Built around ESP32-WROOM-32, this minimum system development board achieves optimal performance with its rich peripheral set, Wi-Fi, and Bluetooth connectivity offered by our flagship SoC, ESP32. The limit is your imagination!
  • Rapid Prototyping
  • Get right into application design and development without worrying about RF performance and antenna design. ESP32-DevKitC has your basic system requirements already covered. Just plug in the USB cable and you’re good to go!
  • Flexible and Feature-Rich
  • ESP32-DevKitC contains the entire basic-support circuitry for ESP32-WROOM-32, including a USB-UART bridge, reset- and boot-mode buttons, an LDO regulator, and a micro-USB connector. Every important GPIO is available to the developer.
  • Breadboard-Friendly
  • The ESP32-DevKitC pinout is optimized to enable prototyping on a breadboard. The on-board LDO output is led out for powering up additional off-board electronics. Peripheral outputs are grouped together for hassle-free prototyping.

ESP32 DoIT Development Board:

The development board breaks out all the module’s pins to 2.54 mm headers and provides a CP2102 USB-TTL serial adapter, programming and reset buttons, and a power regulator to supply the ESP32 with a stable 3.3 V. Espressif doubled-down on the CPU resources for the ESP32 with a dual-core, running at 160MHz and tons more pins and peripherals. Now supported by Arduino IDE!!

ESP32 is highly-integrated with in-built antenna switches, RF balun, power amplifier, low-noise receive amplifier, filters, and power management modules. ESP32 adds priceless functionality and versatility to your applications with minimal Printed Circuit Board (PCB) area requirements. Buy Espressif ESP32 WROOM 32D Development Board at Pakistan's Best Online Shopping Store at a low price. Wide range of ESP 32. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan and all over Pakistan

ESP32 DoIT Development Board

Features:

  • 240 MHz dual-core Tensilica LX6 microcontroller with 600 DMIPS
  • Integrated 520 KB SRAM
  • Integrated 802.11BGN HT40 Wi-Fi transceiver, baseband, stack, and LWIP
  • Integrated dual-mode Bluetooth (classic and BLE)
  • 16 MByte flash
  • -40°C to +125°C operating temperature
  • On-board PCB antenna / IPEX connector for external antenna

Sensors:

  • Ultra-low noise analog amplifier
  • Hall sensor
  • 10x capacitive touch interface
  • 32 kHz crystal oscillator

GPIO:

  • 3 x UARTs, including hardware flow control
  • 3 x SPI
  • 2 x I2S
  • 12 x ADC input channels
  • 2 x DAC
  • 2 x I2C
  • PWM/timer input/output available on every GPIO pin
  • OpenOCD debug interface with 32 kB TRAX buffer
  • SDIO master/slave 50 MHz
  • Supports external SPI flash up to 16 MB
  • SD-card interface support

Security:

  • WEP, WPA/WPA2 PSK/Enterprise
  • Hardware-accelerated encryption: AES / SHA2 / Elliptical Curve Cryptography / RSA-4096

Performance:

  • Supports sniffer, station, softAP, and Wi-Fi direct modes
  • Max data rate of 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, and 11 Mbps@11b
  • Maximum transmit power of 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
  • Minimum receiver sensitivity of -98 dBm
  • 135 Mbps UDP sustained throughput
  • 2.5 μA deep sleep current

Data Sheet:

  • ESP32 Datasheet
  • Pinout Diagram
  • Technical Reference Manual
  • Block Diagram

Package Includes:

1 x Espressif ESP32 Development Board
