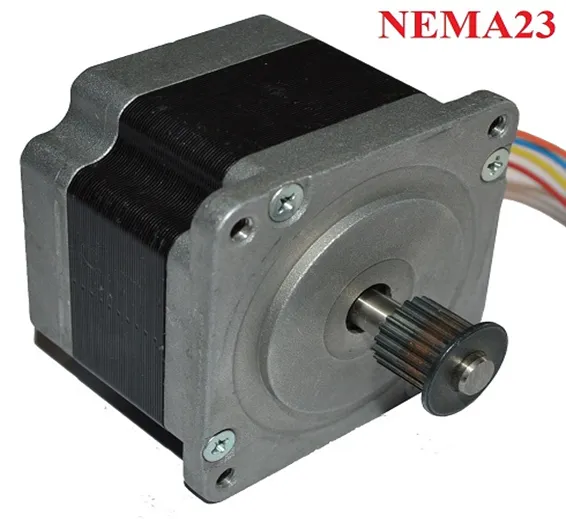

Bipolar NEMA23 2A Stepper Motor 4 Wire Stepper Motor
Stepper Motor

Bipolar NEMA23 2A Stepper Motor 4 Wire Stepper Motor

Condition: Used
Availability: In Stock
Advance Payment Only
Share:

SKU: MDL2,TMD,Th,KRT

Rs.600 Rs. 750

Bipolar NEMA23 1.8 Degree 2A Stepper Motor is very useful in the various application especially which demands low speed with high precision. Many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters etc. Nema23 4 wire Bipolar Stepper Motor is High precision 4–wire bipolar stepper motor, size in Nema 23, 1.8 deg. step angle (200 … It is one of most parameters for the stepper motor).

Features:

Stepper motor is known by its property to convert a train of input pulses into a precisely defined increment in the shaft position. This is a high quality motor that can be used for a long time without stuck. It has a quite stable performance during work and will not loss step. Low noise and big torque, this is a great choice if you need a stepper motor. Stepper motor can be widely used for 3D printer, CNC engraving machine, etc.

Specifications:

  1. Step Angle: 1.8°
  2. Phase Current: 2A
  3. Phase Resistance: 1.5Ohm
  4. Phase Inductance: 2.8mH
  5. Holding Torque: 20N.cm
  6. Rotor Inertia: 54g.cm⊃2;
  7. Wire: 4(Blue, green, Black, red)
  8. Max. Temperature Rise: 80℃ (rated current, 2 phase on)
  9. Operating Temperature: -20℃~+70℃
  10. Insulation Resistance: 100 MΩ Min. , 500VDC
  11. Electric Strength: 500VAC for 1minute
  12. Radial Clearance: 0.02Max. (450g-load)
  13. Axial Clearance: 0.08Max. (450g-load)
  14. Max. Axial Pressure: 15N

Package Includes: 1x Stepper motor
