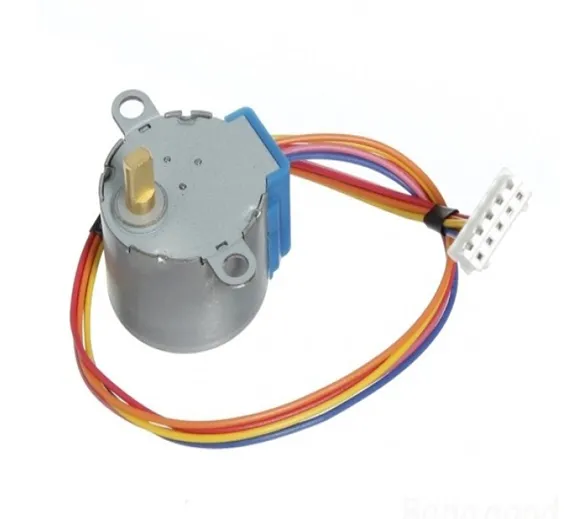

Arduino 28BYJ48 5V Stepper Motor High Torque Stepper Motor With Gear
Stepper Motor

Arduino 28BYJ48 5V Stepper Motor High Torque Stepper Motor With Gear

Condition: 10/10
Availability: In Stock
Advance Payment Only
Share:

SKU: B 193,,D06,IMP50,Th20,KRT09+522,N185

Rs.350 Rs. 438

Arduino 28BYJ48 5V Stepper Motor High Torque Stepper Motor with Gear Reduction, so it has good torque for its size, but relatively slow motion. These motors/drivers are made by the millions for A/C units, fans, duct controls etc. which is why they are so inexpensive. Available in 5V or 12V.

Details/ Specificatoins:

  1. Model : 28BYJ-48
  2. Number of Phase : 4
  3. Speed Variation Ratio : 1/64
  4. Stride Angle : 5.625° /64
  5. Rated voltage : DC [5v - 12v]
  6. DC resistance : 5v: 60Ω±7%(25℃); 12v: 130Ω±7%(25℃)
  7. Frequency : 100Hz
  8. Idle In-traction Frequency : > 600Hz
  9. Idle Out-traction Frequency : > 1000Hz
  10. In-traction Torque >34.3mN.m(120Hz)
  11. Self-positioning Torque : 5v: >29.3mN.m; 12v: >42.1mN.m
  12. Friction torque : 600-1200 gf.cm
  13. Pull in torque : 300 gf.cm
  14. Insulated resistance >10MΩ(500V)
  15. Insulated electricity power : 600VAC/1mA/1s
  16. Insulation grade : A
  17. Rise in Temperature <40K(120Hz)
  18. Noise <35dB(120Hz,No load,10cm)
