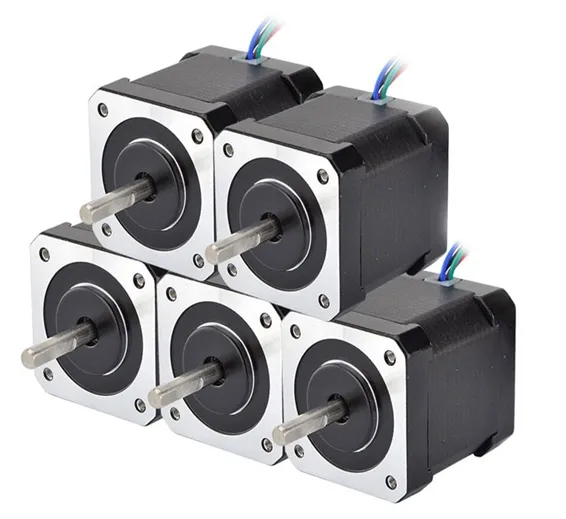

42BYGHW804 IM42HS60 NEMA17 Stepper Motor For 3D Printer And CNC

This 42BYGHW804 IM42HS60 NEMA17 Stepper Motor For 3D Printer is High-torque stepper motor in size NEMA 17 (42 mm) with 1.8° step angle (full step) with D-Shaft for easy and reliable connection with coupler. 42BYGHW804 Nema17 steppers are a great way to get things moving, especially when positioning and repeatability is a concern. This is a Bipolar motor.

SPECIFICATIONS:

1. Step Angle: 1.8
2. Holding Torque: 4.8kg.cm
3. Rated Voltage: 3.6Volt
4. Rated Current: 1.2A/Phase
5. Form Factor: NEMA 17
6. Shaft Type D-Shaft
7. Wire Connector JST PH male connector.
8. 2-Phase (4-Wires)
9. Holding Torque: 48N.cm (4800g-cm)
10. Resistance: 3.2Ω/phase
11. Inductance: 5mH/phase
12. Form factor: NEMA 17

Dimensions:

1. 42 x 42 x 47mm
2. Weight: 380g
3. Shaft Diameter: 5mm
4. Shaft Length: 18mm
5. 4 x M3 Holes for mounting base

Connection

A+

A-

B+

B-

Black

Green

Red

Blue

Package Include:

1x Nema17 Stepper Motor
