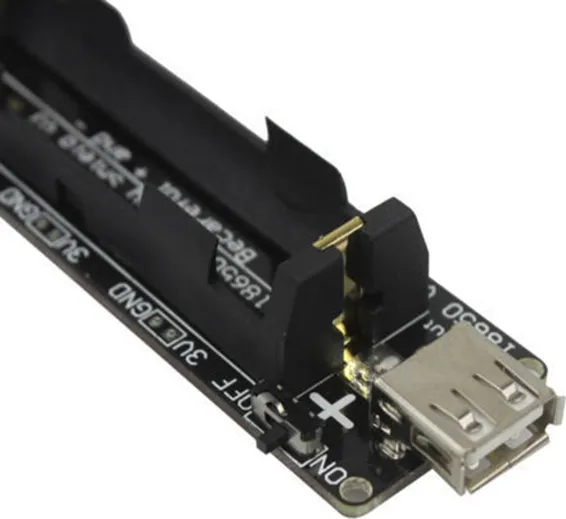

18650 Battery Charging Shield Arduino Battery Shield NodeMcu Battery Shield

Now 18650 battery shield has updated to V3. You can use this battery shield to power many products like Raspberry Pi or arduino. At this version 18650 shield has a protection. The output current can reach 2A. I believe this would be useful for projects.

What makes it special?

1. Battery protection(Over charge or Over discharge)
2. Micro USB port Input
3. Type-A USB Output
5. 0.5A current charging
7. 1 switch control USB output
8. 5~8V Input Voltage
9. 3V & 1A Output
10. 5V & 2A Output
11. LED indicate(Green means full,Red means charging)
12. 3V output port x3
13. 5V output port x3

Specifications:

1. Input port: Micro USB
2. USB output type: Type-A
4. 0.5A current charging
6. 1 switch control USB output
7. Input Voltage:5~8V
8. Output:3V & 1A (x3)and 5V & 2A
9. LED indicate: Green means full,Red means charging
10. Size: 9.8x2.9cm

Note:

Be careful of "+" and "-", You should follow the direction of "+""-" on the PCB.If you put wrong direction, charging chip will be destroyed.
