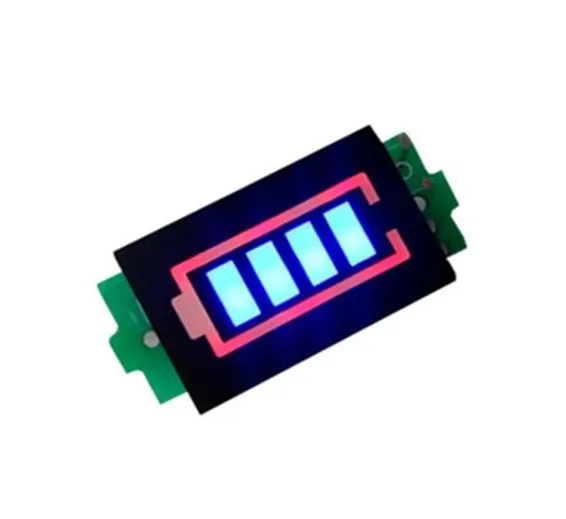

3S Lithium Battery Capacity Indicator
Condition: New
Availability:
In Stock
Advance Payment Only
SKU: B403,IMP,TH,KRT
Rs.350
Rs. 438
3S
Lithium Battery Capacity Indicator
provide a quick visual reference of the charge status (capacity) of 18650 Lithium-ion batteries, as well as other lithium batteries with a maximum voltage of 4.2 volts per cell.3SLithium Battery Capacity Indicator
is perfect for DIY power supplies, battery chargers, RC and electric vehicles, to provide quick and easy-to-read voltage status of the battery.3SLithium Battery Capacity Indicator
color is red, and the display bars are blue. Dimensions of 3SLithium Battery Capacity Indicator
Indicator Display Range:
3S
Lithium Battery Capacity Indicator
Module: 11.1V - 12.6VBattery status display:
- When the battery voltage is over N * 3.3V, it will illuminate 1 bar (N represents the number of battery cells, e.g. 1, 2, 3 or 4).
- When the battery voltage is over N * 3.5V, it will illuminate 2 bars
- When the battery voltage is over N * 3.7V, it will illuminate 3 bars.
- When the battery voltage is over N * 3.9V, it will illuminate 4 bars.
- When the battery voltage is less than N * 3.3V, none of the bars will illuminate, indicating that the battery is less than 3.3V and in need of recharging.
Lithium Battery Capacity Indicator
:Battery Type
Electricity Quantity Display
Wide Application Field
Lithium Battery Capacity Indicator
Digital Color
3SLithium Battery Capacity Indicator
color is red, and the display bars are blueUsing Method
Connect the module to the positive and negative connections of your battery or battery pack, and the charge status of the battery is displayed in real time using a visual bar display
Package Includes:
1 x 3SLithium Battery Capacity Indicator
Voltmeter Module
