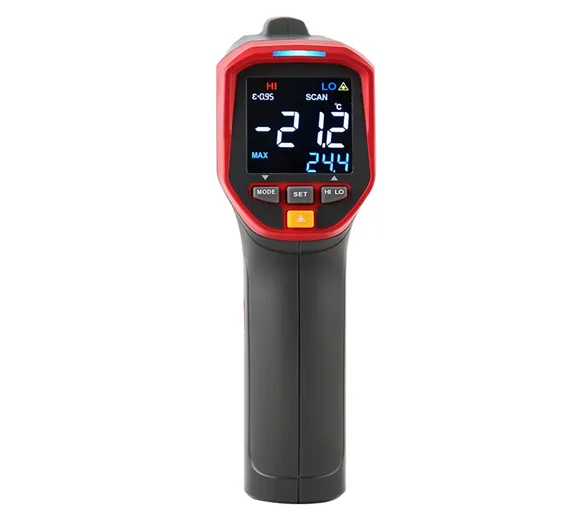

UT305S Professional Infrared Thermometer
UT305S infrared thermometer can measure temperature by laser. UT305S has a 50:1 D:S ratio, so it can measure long range temperature points of interest with great accuracy. UT305S also has 99 sets of data storage and USB data transmission. It is an ideal tool for industrial quality inspection such as HVAC and electronics manufacturing.
SKU: TCBOX88
Ask Price
Features of UT305S Professional Infrared Thermometer:
- °C/°F selection
- Laser switch
- Data hold/LCD backlight
- Auto power off
- Tripod mounting hole
- Low battery indication
- MAX/MIN/AVG/DIFF mode
- High/low alarm
Technical Specifications of UT305S Professional Infrared Thermometer:
| Specifications | UT305S |
| Certifications | CE/RoHS |
| Temperature range (℃) | -50°C~2000°C |
| Temperature range (℉) | -58.0℉~3632℉ |
| Accuracy | ±1.0℃ or ±1.0% |
| Repeatability | 0.7℃ or 0.7% |
| LCD display | EBTN |
| High/low temperature LED alarm | √ |
| Trigger lock | √ |
| Resolution | 0.1°C |
| D:S ratio | 50:1 |
| Response time | 250ms (95% of reading) |
| Emissivity | 0.1~1.0 adjustable |
| Laser type | Class 2 |
| Laser power | ＜1mW |
| Laser wavelength | 630nm~670nm |
| Spectral response | 8μm~14μm |
| Data storage | 99 |
| General Characterisitics | |
| Power | 9V Battery (1604S) |
| Display | 35mm x 35mm |
| Product net weight | 310g |
| Product size | 172mm x 113.5mm x 53mm |
| Standard accessories | Battery, carrying bag, English manual |
| Standard individual packing | Gift box |
| Standard quantity per carton | 10pcs |
| Standard carton measurement | 425mm x 335mm x 365mm |
| Standard carton gross weight | 6.65kg |
