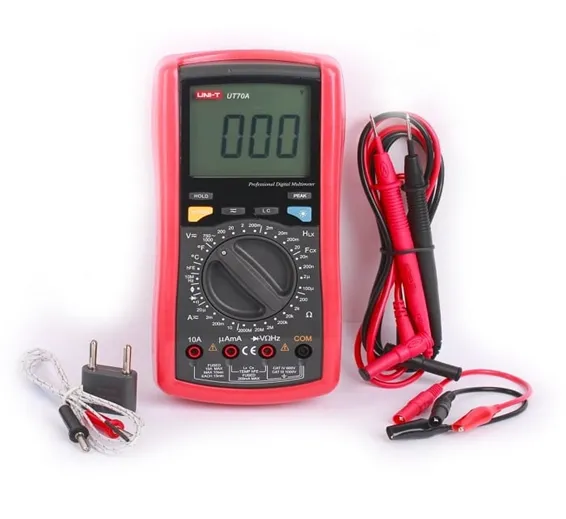

UNI T Multi Purpose Digital Multimeter UT70A
Multimeters

UNI T Multi Purpose Digital Multimeter UT70A

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only
Share:

SKU: TMD1,Th6,KRT

Ask Price

The UNI-T UT70A meter is a handheld digital multimeter with advanced design. The UT-70A professional multimeter has multiple functions, large display screen and reliable performance, at a much lower price than you would expect to pay for a multimeter of this quality. This pocket multimeter is able to measure voltage & current (AC & DC),

  • resistance
  • ,
  • capacitance
  • ,
  • inductance
  • ,
  • frequency
  • , temperature, forward voltage drop of diodes, transistor hFE, continuity test & TTL LOGIC level measurement. You can buy this UNI-T UT70A advanced meter from all over Pakistan.

    Features Of Uni-t UT-70A Modern Digital Multi-purpose Multimeter:

    • Functions:
      • AC/DC current and voltage
      • resistance
      • capacitance
      • frequency
      • inductance
      • temperature (ºC or ºF)
      • continuity test (with buzzer)
      • diode test
      • transistor test
      • TTL logic test
    • Manual ranging
    • Fused 10A range
    • Data Hold function
    • Peak Hold function
    • Auto power off
    • Sleep mode
    • Low battery indication

    Specifications Of Digital multimeter UNI-T UT70A:

    1. DC Voltage: 200mV / 2V / 20V / 200V / 1000V
    2. DC voltage accuracy: +/- (0.5%+1)
    3. AC Voltage: 200mV / 2V / 20V / 200V / 750V
    4. AC voltage accuracy: +/- (0.8%+3)
    5. DC Current: 20µA / 2mA / 200mA / 10A
    6. DC current accuracy: +/- (0.8%+1)
    7. AC Current: 20µA / 2mA / 200mA / 10A
    8. AC current accuracy: +/- (1%+3)
    9. Resistance: 200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 MOhm / 2000 MOhm
    10. Resistance accuracy: +/- (0.8%+1)
    11. Capacitance: 20nF / 200nF / 2uF / 100uF
    12. Capacitance accuracy: +/- (2.5%+5)
    13. Frequency: 2kHz - 10MHz (auto)
    14. Frequency accuracy: +/- (0.1%+3)
    15. Inductance: 2mH / 20mH / 200mH / 20H
    16. Inductance accuracy: +/- (2%+10)
    17. Temperature: from -40 to +1000°C, from -40 to +1832°F
    18. Temperature accuracy: +/-1%+3 (°C), +/-1%+4 (°F)
    19. TTL Logic Test: (High > 2.0V, Low < 0.8V)
    20. Power: 9V bat.
    21. Product size: 195 x 90 x 40mm
    22. Product weight: 620g

    Package includes:

    • 1 x UNI T Multi-Purpose Digital Multimeter UT70A
    • 2 x Test leads
    • 2 x Test clips
    • 1 x Point Contact Temperature Probe
    • 1 x Multi-Purpose Socket
    • 1 x user manual

    Best Online Shopping website for UNI T Multi-Purpose Digital Professional Multimeter UT70A Pocket Size Avo Meter DC AC Voltage Current Meter Tester in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
