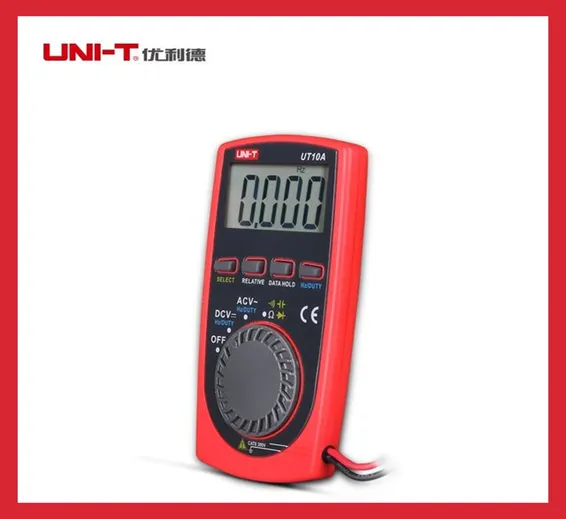

The Meter uses large scale of integrated circuit with double integrated A/D converter as its core. Can measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Diodes and Continuity Has Relative Mode, Data Hold, Full Icon Display, Duty Cycle and Sleep Mode features.
Specifications: Specifications Range Best Accuracy Modle UT10A DC Voltage 400mV/4V/40V/300V ±(0.8%+1) AC Voltage 4V/40V/300V ±(1.2%+3) Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1%+2) Capacitance 4nF/40nF/400nF/4µF/40µF/200µF ±(4%+3) Frequency 10Hz/100kHz ±(0.5%+3) Features Auto Ranging √ Duty Cycle 0.1%~99.9% √ Diode √ Continuity Buzzer √ Relative Mode √ Data Hold √ Full Icon Display √ Sleep Mode √ Low Battery Display √ Input Impedance for DC Voltage Measurement Around 10MΩ √ Max. Display 3999 √ General Characteristics Power 3V Button Battery (CR2032) (INCLUDED) LCD Size 43 x 22mm Product Colour Red and Grey Product Net Weight 62g Product Size 58 x 108 x 12mm Packing Included:1 x UNI-T UT10A Digital LCD Palm Size Multimeter
