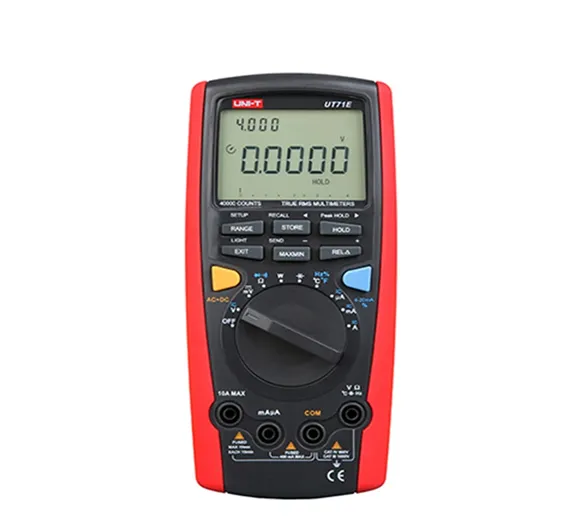

UNI-T UT71E Middle Size Intelligent Digital Multimeter
Multimeters

UNI-T UT71E Middle Size Intelligent Digital Multimeter

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only
Share:

UT71 series can quickly solve complex problems on electronics, factory automation, distribution and electronic engineering equipment. UT71 series can set upper and lower limits, a very useful feature for improving electronics mass production inspection and screening efficiency.

SKU: TCBOX88

Ask Price

Features of UT71E Middle Size Intelligent Digital Multimeter:

  • Adjustable data recording interval
  • True RMS, duty cycle, continuity buzzer
  • MAX/MIN/REL modes; peak/data hold; analog bar graph
  • 4-20mA loop test
  • 45Hz~100kHz frequency response
  • LCD backlight; misplug alarm
  • Auto power off, low battery indication
  • Data logging
  • Auto and manual ranges selectable
  • USB interface, Bluetooth
  • 2500W power measurement
  • Temperature measurement, k-type
  • Smart phone APP: iDMM
  • Works with UT-D07A Bluetooth adaptor
  • Download from Apple Store or Google Play Store

Specifications of UT71E Middle Size Intelligent Digital Multimeter:

Specifications Range UT71E
DC voltage (V) 1000V ±(0.025%+5)
AC voltage (V) 1000V ±(0.4%+30)
DC current (A) 10A ±(0.1%+15)
AC current (A) 10A ±(0.7%+15)
Resistance (Ω) 40MΩ ±(0.3%+8)
Capacitance (F) 40mF ±(1%+20)
Frequency (Hz) 40Hz~400MHz ±(0.01%+8)
Temperature -40°C~1000°C ±(1%+30)
-40°F~1832°F ±(1.5%+50)
Display count   40000
General Characteristics
Power 9V battery (6F22)
Display 73mm x 50mm
Product color Red and grey
Product net weight 384g
Product size 200mm x 93mm x 40mm
Standard accessories Battery, test leads, alligator clip, test clips, USB interface cable, PC software CD, carrying bag, point contact temperature probe, power adaptor
Standard individual packing Gift box, English manual
Standard quantity per carton 10pcs
Standard carton measurement 540mm x 360mm x 275mm
Standard carton gross weight 12.5kg
