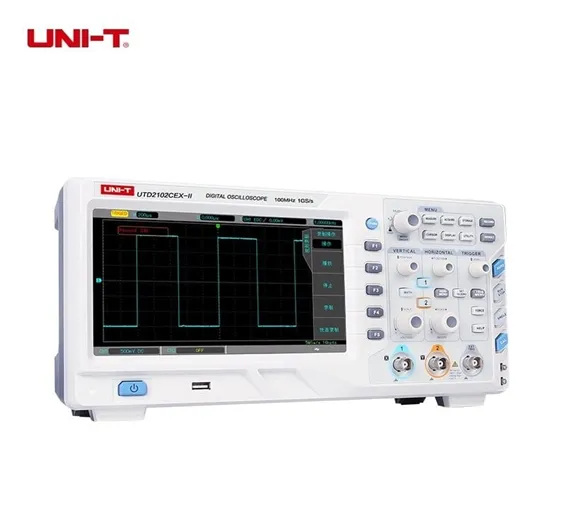

Digital Storage Oscilloscope 2 Channel DSO UNI T UTD2102CEX II

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: RAWLIXDig

Rs.56700 Rs. 70875

An oscilloscope is a laboratory instrument commonly used to display and analyze the waveform of electronic signals. In effect, the device draws a graph of the instantaneous signal voltage as a function of time. UNI-T UTD2102CEX-II digital oscilloscope is a 2 channel 100MHz bandwidth high-performance device.2 Channel 100MHz Scope has 8-inch TFT LCD, WVGA (800×480) display. Digital Scopemeter has 6 type of Trigger modes: Edge, Pulse Width, Runt, Over-amplitude, Slope, and Video It has a sampling rate of 1GS/s. Digital Storage CRO is ergonomic, lightweight, universal instruments designed for engineers. Sampling Oscilloscope is suitable for field testing and analyzing time-based voltage signals in a mobile environment. Modern DSO Obtain CE certification and ETL certification.

Features Of UNI-T UPO-2104CS Oscilloscope DSO Scopemeter:

  • 100MHz bandwidth, 1GSa/s real-time sampling rate
  • 2 channels
  • 25kpts memory depth
  • 20,000wfms/s waveform acquisition rate
  • 2ns/div~50s/div time-base
  • Trigger modes: Edge, Pulse Width, Runt, Over-amplitude, Slope and Video
  • Calibration Signal Output: 10Hz, 100Hz, 1kHz (default), 10kHz and 100kHz
  • Input calibration signal only by pressing a button
  • 10Mpts waveform recording
  • 8-inch TFT LCD, WVGA (800×480)
  • USB OTG and Pass/Fail interfaces
  • Obtain CE certification and ETL certification

Specifications Of 4 Channel Digital Storage Oscilloscope:

  1. Power: 100-240VAC, 40-440Hz
  2. LCD Size:
  3. 8-inch TFT LCD, WVGA (800×480)
  4. Color: White and Grey
  5. Dimension: 336x164x108mm

Package Include:

  • 1x Oscilloscope
  • 2x Probe (1×,10× switchable)
  • 1x power cord
  • 1x USB cable

Best Online Shopping Website for Digital storage Oscilloscope UNI T UTS2102CEX-II 2 channel 100MHz DSO data analysis Oscilloscope in cheap price in Karachi Lahore Islamabad Rawalpindi Sukkur Peshawar Multan Quetta Faisalabad and all over Pakistan
