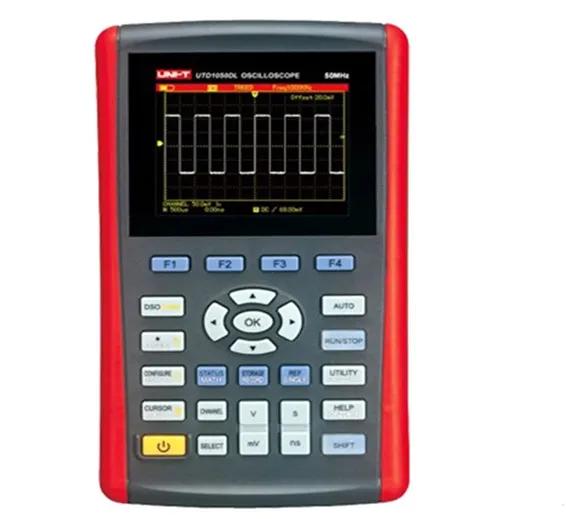

UNI T UTD1050DL Handheld Digital Storage Oscilloscope
Oscilloscope

UNI T UTD1050DL Handheld Digital Storage Oscilloscope On sale

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only
Share:

SKU: TMD1,Th6,KRT

Rs.85000 Rs. 106250

An oscilloscope is a laboratory instrument commonly used to display and analyze the waveform of electronic signals. In effect, the device draws a graph of the instantaneous signal voltage as a function of time. UNI-T UTD1050DL handheld oscilloscope is a single channel portable device with 25MHz bandwidth and 200MS/s sampling rate. Portable Storage Oscilloscope is an economical instrument with the functions of oscilloscope and multimeter. Handheld Digital CRO is an ergonomic, lightweight, universal instruments designed for engineers. Mini Pocket Oscilloscope is suitable for field testing and analyzing time-based voltage signals in a mobile environment

Features Of UNI-T UTD1050DL Digital Storage Pocket Oscilloscope:

  • Fully autoscale; vertical scale and time-based automatically adjusted with the signal and without any manual interference
  • Unique and powerful auto-setup, quick and accurate to set up for signals with any DC component
  • Wider voltage measuring range; coupled with 10×probe with attenuation up to 200V/div
  • Isolated USB for much safer communication
  • White and black display for your option, perfect for use outdoor with strong light
  • Intelligent local network software update
  • More than 8 hours of continuous battery operation

Specifications Of Handheld Digital Storage Oscilloscope Multitester DSO:

  1. Bandwidth: 50 MHz
  2. Rise time: ≤ 7 ns
  3. Real-time sampling rate: 250 MS/s
  4. Vertical sensitivity: 5 mV/div ~ 20 V/div
  5. Record length (max): 12 kpts
  6. Timebase range: 10 ns ~ 50 s/div
  7. Trigger type: Edge, Pulse, Video, and Slope
  8. DC voltage: 400 mV / 4 V / 40 V / 400 V: ±(1%+5)
  9. AC voltage: 400 mV / 4 V / 40 V / 400 V: ±(1.2%+5)
  10. DC current: 400 μA / 4000 μA / 40 mA / 400 mA / 4 A: ±(1.5%+5)
  11. AC current: 400 μA / 4000 μA / 40 mA / 400 mA / 4 A: ±(2.5%+5)
  12. Resistance: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ: ±(1.2%+5)
  13. Capacitance: 51.20 nF / 512 nF / 5.120 μF / 51.20 μF / 100 μF: ±(3%+5)
  14. Max.display: 4000
  15. LCD size: 3.5"
  16. Power supply: 100-220 V, 50/60 Hz
  17. Battery: 7.4 V, 3600 mAh
  18. Dimensions: 199 × 118 × 49 mm
  19. Weight: 0.9 kg

Package Includes:

  • 1 x UNI-T UTD1050DL digital oscilloscope module
  • 2 x Oscilloscope probes (1:1, 10:1)
  • 2 x Test lead 10 A
  • 1 x Power adaptor
  • 2 x current-to-voltage converter
  • 1 x Carrying case
  • 1 x USB cable
