Oscilloscope

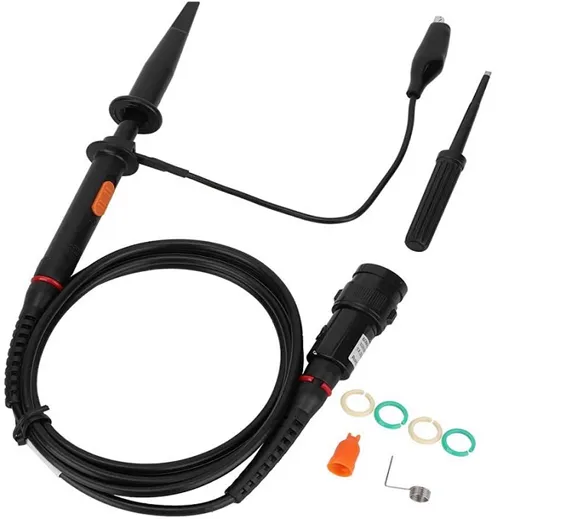

UNI T 60Mhz Passive Probe Lead Oscilloscope UT P03

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: TMD,Th,KRT

Rs.1050 Rs. 1313

UNI-T UT P03 60Mhz Oscilloscope Probe has 12cm earth wire and

  • 4 pairs of colourized cable markers.
  • UTP-03 scope probe is compatible with domestic/ international digital and analogue oscilloscopes in relevant frequency. UTP 03 best Oscilloscope lead has passed the CE Attestation of the European Community. This best oscilloscope is manufactured with high-quality electronic components. This oscilloscope multimeter can be perfectly adapted to the corresponding type of oscilloscope.

    Features Of 60Mhz Oscilloscope Passive Probe UT-P03:

    • Attenuation ratio: 1× and 10× optional.
    • Portable design according to ergonomics.
    • Integral injection moulding makes the usage more flexible and the oscillograph able to adapt more testing situations.
    • Safety standards: it has passed the CE Attestation of the European Community.
    • Compatible with domestic and international digital and analogue oscilloscopes in relevant frequency.
    • Measurement in intermediate and low-frequency signals.
    • Accessories included by PP series passive voltage rapier.
    • Adjusting tool: adjusts compensation capacitance to assure the rapier match with oscillograph.
    • Contractive-type acuminate hook.
    • 12cm earth wire with an alligator clip.
    • 4 pairs of colourized cable markers.
    • Locating sleeve adapts to IC testing.
    • Double-nip wire.

    Specifications Of Best Portable Oscilloscope Current Probe UTP03:

    1. Model: UT-P03
    2. Passive probe: 1:1/10:1
    3. Bandwidth: 60MHz
    4. Input resistance: 1x: 1MΩ±2%, 10x: 10MΩ±2%
    5. Input capacitance: 1x: 100pF~150pF, 10x: 18.5pF~22.5pF
    6. Compensation range: 8pF~35pF
    7. Working voltage: 1x: 300Vp-p, 10x: 600Vp-p
    8. Weight: 115g / 4.1oz

    Package Includes:

    • 1 x UNI T 60Mhz Scope Probe Lead Oscilloscope UTP03

    Best Online Shopping website for UNI T 60Mhz Passive Probe Lead Oscilloscope UTP03 Best Portable Oscilloscope Multimeter in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
