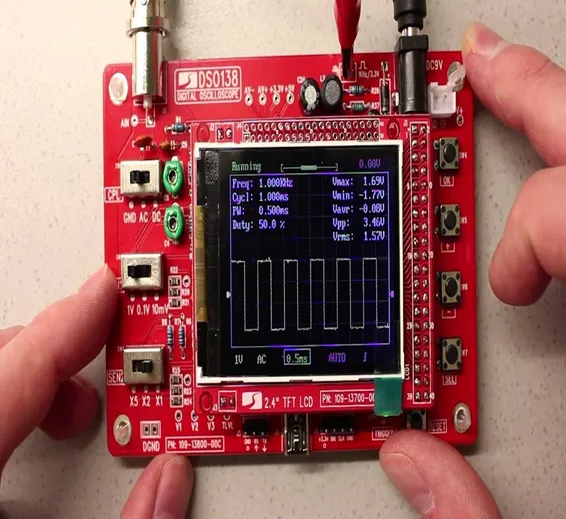

Fully Assembled DSO138 2.4″ TFT Digital Oscilloscope In Pakistan

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: B248,B247,D130,D129,IMP10,Th5,KRT

Rs.4500 Rs. 5625

This Fully Assembled DSO138 2.4″ TFT Digital Oscilloscope In Pakistan is a cheap and small size oscilloscope.  This DSO138 digital oscilloscope kit adopts ARM Cortex-M3 processor and with a 2.4-inch TFT screen. It’s easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values. This boost converter is a great match for the DSO138 oscilloscope kit. It can be connected directly to the DSO138 motherboard(not included), make the DSO138 oscilloscope to be a portable oscilloscope for better use.

Features Of DSO138 Oscilloscope:

  • This kit uses ARM Cortex-M3 processor (STM32F103C8) and includes a 2.4-inch color TFT display screen, which can be used as the ARM test development board.
  • Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
  • Adjustable vertical displacement, and with instructions.
  • With automatic, regular, and one-shot modes, easy to capture the moment waveform.
  • Available rising or falling edge trigger.
  • Observable previous trigger waveform (negative delay).
  • Can freeze at any time waveform display (the HOLD function).
  • Comes 1Hz /3.3V square wave test signal source.
  • With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

Specifications Of DSO138 Oscilloscope:

  • Supply Voltage (V)    9V DC
  • Input Impedance (Ω)    1MΩ
  • Maximum Real-time Sampling Rate    1Msps
  • Sampling Buffer Depth    1024 bytes
  • Analog Bandwidth    0-200KHz
  • Vertical Sensitivity    10mV / Div – 5V / Div (1-2-5 progressive manner)
  • Accuracy    12Bit
  • Coupling Modes    DC / AC / GND
  • The Horizontal Time Base Range    10μs / Div – 50s / Div (1-2-5 progressive manner)
  • Length (mm)    118
  • Width (mm)    77
  • Height (mm)    19
  • Weight (gm)    130
  • Shipment Dimensions    17 × 12 × 3 cm

Package Includes In DSO138 Oscilloscope:

  • 1 x DSO138 DIY Digital Oscilloscope Kit.
  • 1 x Probe.
