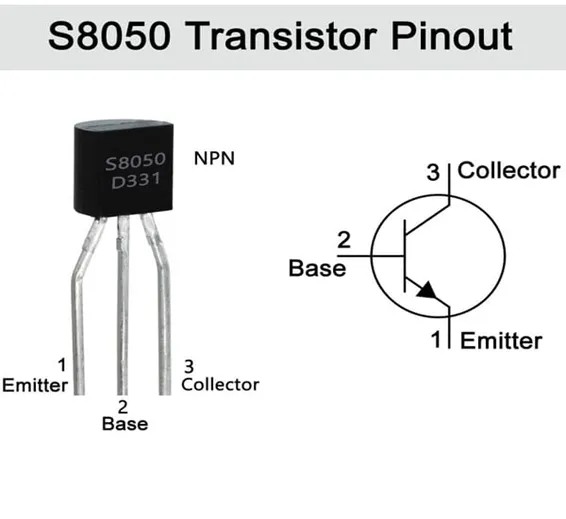

NPN Transistor S8050
Transistor

NPN Transistor S8050

Condition: New
Availability: Out Of Stock
Advance Payment Only
Share:

SKU: SB68,TH500,KRT

Ask Price

S8050 is a commonly used NPN transistor. This transistor is designed for Audio amplification and a wide variety of general-purpose uses in electronic circuits, like switching applications. Its collector current is 0.7A or 700mA so it can allow a maximum current of 700mA through its collector and emitter pins. Therefore we can only drive loads which are in the 700mA limit is enough to handle a variety of loads for example relays, LEDs, bulbs, etc. The maximum voltage this Silicon transistor can allow through its collector and emitter pins is 20V, therefore you can only use this transistor in circuits that operate under 20V. The normal gain value of the Small Signal Amplification Transistor is 110 and the maximum gain value is 400. The max gain value shows the max amplification of a signal you can achieve from a transistor in an electronic circuit.

Features Of General Purpose Silicon NPN Transistor S8050:

  • General-purpose
  • It is designed for audio amplification
  • It can use as a switch in electronic circuits to switch on loads under 700mA.
  • Low Voltage, small current signal amplification
  • 2 W Output Amplifier of Portable Radios in Class B Push-pull Operation
  • Complimentary to SS8550
  • Collector Current: IC = 0.7 A

Specifications Of S8050 Low Voltage High Current Signal Amplification Transistor:

  1. Package-Type: TO-92
  2. Transistor Type: NPN
  3. Max Collector Current(IC): 0.7A or 700mA
  4. Max Collector-Emitter Voltage (VCE): 20V
  5. Max Collector-Base Voltage (VCB): 30V
  6. Max Emitter-Base Voltage (VBE): 5V
  7. Max Collector Dissipation (Pc): 1 Watt
  8. Max Transition Frequency (fT): 100 MHz
  9. Minimum & Maximum DC Current Gain (hFE): 40 – 400
  10. Max Storage & Operating temperature Should be: -65 to +150Centigrade

Datasheet

Applications:

  1. Class B Amplifiers
  2. Push-pull circuits
  3. Switch for small loads
  4. Amplifying low gain signals to high gain

Package Include:

  • 1x transistor S8050
