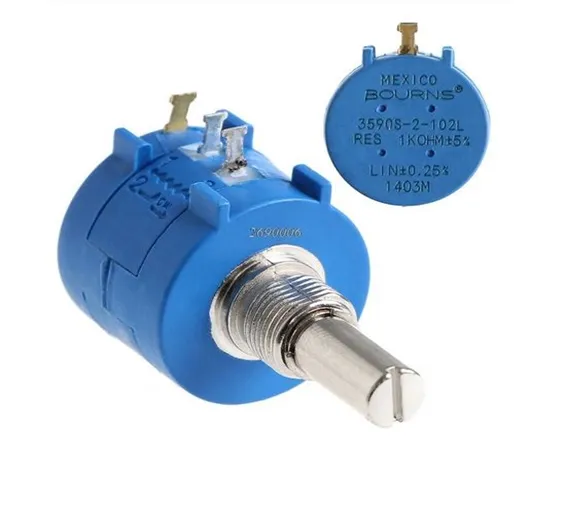

Multiturn Potentiometer 1k Ohm 2W Bourns POT 3590S-2-102L

Condition: New
Availability: In Stock
Share:     Faceook Twitter


Rs.375 Rs. 469

A 1k Ohm Potentiometer is a three-terminal resistor with a sliding or rotating contact that forms an adjustable voltage divider. If only two terminals are used, one end and the wiper, it acts as a variable resistor or rheostat. Bourn's Precision potentiometer 1k is designed for control applications where accuracy and high-reliability are important. Multiturn 1k ohm Potentiometer is available in conductive plastic, wire-wound or Hybritron® element types. Typical applications Of 10 turn 1k ohm Variable Resistor includes measuring linear distance, angles or rotations in production equipment, industrial test and measurement equipment, and medical equipment.

Features Of Multi-turn 1k Ohm Potentiometer:

  1. Bushing mount
  2. Optional AR pin feature
  3. Plastic or metal shaft and bushings
  4. Wirewound
  5. Solder lugs or PC pins
  6. Sealable (Full body seal)

Specifications Of Multi-turn 1k Ohm Potentiometer:

  1. Technology: Resistance
  2. Model Number: 3590S-2-102L
  3. Type: Organic Solid Potentiometer
  4. Resistance: 1K ohm
  5. Resistance Tolerance: ± 5%
  6. Power: 2W Max.
  7. Operating Voltage: 450V
  8. Operating Temperature: -55 ° C to +125 ° C
  9. Life Hour: 1000 Hours
  10. Rotating Life: 1,000,000 times

3590S-2-102L Datasheet

Package Include:

1x Multiturn Potentiometer 1k Ohm 2W Bourns POT 3590S-2-102L

Buy Multiturn Potentiometer 1k Ohm 2W Bourns POT 3590S-2-102L at an Online shopping store at cheap price. Here you get a wide range of Potentiometers/Variable resistors. We deliver in Lahore, Karachi, Islamabad, Faislabad, Gujranwala, Multan, Peshawar, Quetta and all over Pakistan.
