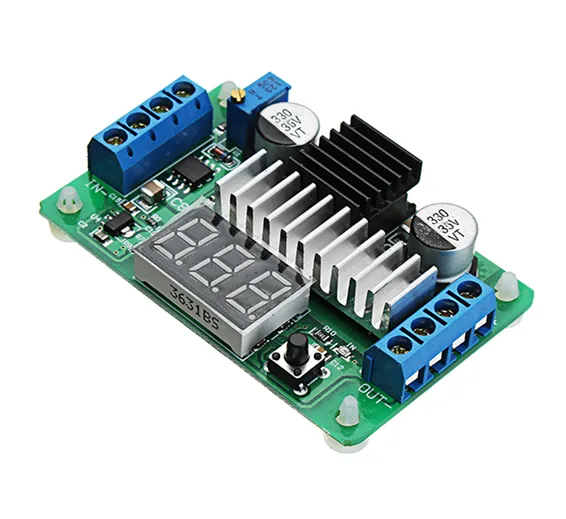

LTC1871 DC-DC 3.5-30V 6A 100W Adjustable High Power Boost Module
Other Modules

LTC1871 DC-DC 3.5-30V 6A 100W Adjustable High Power Boost Module

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: B236,IMP5,Th2,KRT

Rs.1200 Rs. 1500

LTC1871 DC-DC 3.5-30V 6A 100W Adjustable High Power Boost Power Module Step Up Board Converter 2 Way Display LED Voltmeter also called Adjustable High Power Boost Power Module Step Up Board Converter, LTC1871 DC-DC 3.5-30V 6A 100W Board Converter, 2 Way Display LED Voltmeter.

Features:

  1. In+: Input positive
  2. In-: Input negative
  3. Out+: Output positive
  4. Out-: Output negative
  5. weight: 40g
  6. Dimensions: 67 x 42 x 18mm (L x W x H)
  7. Input voltage: DC 3.5-30V
  8. Output power: 100W maximum {Note: according to the law of conservation of power, computation under the condition of rated output current : Uin*Iin*efficiency =Uout*Iout(Uin:input voltage, Iin:input current)}
  9. Output voltage: 3.5v-30v (step-up mode, the input must be less than or equal to the output voltage)
  10. Input current: 6A (maximum 10A)
  11. Voltage meter accuracy: ± (5 ‰ +1 digit)
  12. Static power consumption: Typical about 15mA(With the input voltage, output voltage and the color is closely related to the digital pipe. The actual current there is a deviation)

Package included: 1 x LTC1871 boost Power module
