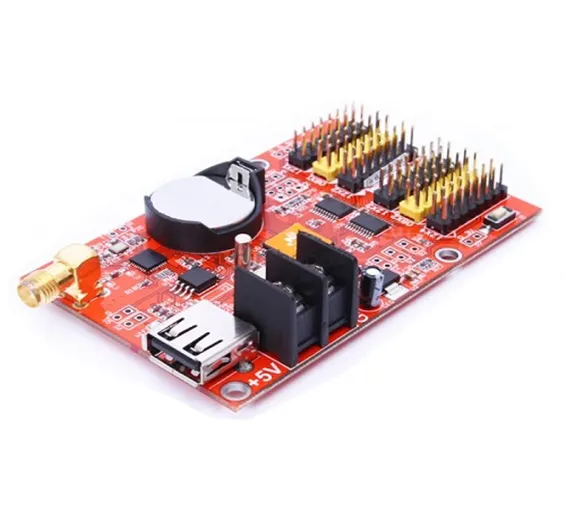

HD-W62 WIFI / U-disk led control card 1024 * 64 pixel wireless for p10 display
SKU: RAWLIXHD-
HD-W62 led display module controller specification:
Model No .: HD-W62
Pixel:
Single color control pixel: Max 1024 * 64,2048 * 32
Dual color control pixel: Max 512 * 64.1024 * 32
Seven color control pixel: Max 672 * 32 ( Full color can be red, green, blue, yellow, purple, cyan and white.)
Communication: WIFI and USB
Interface: 2 * hub08, 4 * hub12
Software: HD2016 (password is 168)
Storage: 2 mt (and it can also be extended to 8 mt)
Scan away: 1/16, 1/8, 1/4, 1/2 scan and static of monochrome / double color LED display
200 programs are available, which can be switched by buttons or remote control
JPG, BMP, GIF support
Display mode: Display in order, switch by button or remote control
Display effect: 1. Text, picture, time, temperature, count, animated characters ect.
2. Support the settings of program / area / custom borders
3. different action modes
4. over 40 special character effects
5. Support simple animated characters
6. Support hollow / caressed characters
7. Support the background setting of area signs
Function of the clock: 1. Support Calendar / Anolog Clock
2. count up / count down display
3. The font, size, color and position can be freely set
4. Support multiple time zones
Expandar: temperature / humidity / remote control / light sensor and wirless RF module support
Brightness settings: Support 3 brightness adjustment
