ESP8266 ESP01 ESP-01 RGB LED Controller Adpater WIFI Module DIY for Arduino IDE WS2812 WS2812B 5050 16 Bits Light Ring Christmas

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: B238,D86.IMP5,Th2,KRT,N181

Rs.550 Rs. 688

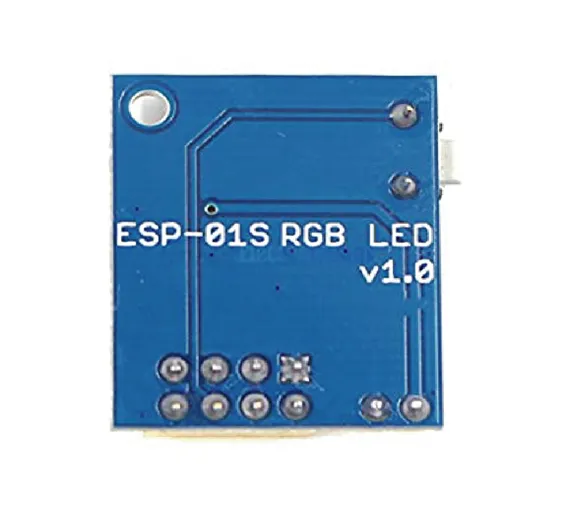

This is a WS2812 RGB LED control module based on ESP-01 / 01S. With it, you can easily control the WS2812 light bar / light ring. DIY own lighting control system. This controller has support for Arduino IDE programming.

Application example:

  1. Power supply: 3.7V-5V DC power supply to the VCC GND (2.54mm pin)
  2. Download the program to ESP-01S
  3. Insert the ESP-01 / ESP-01S into the 2 * 4 Pin header

Features/ Device characteristics:

  1. Master: ESP-01 / ESP-01S
  2. Control Pin: GPIO2
  3. Interface: 3Pin PH2.0 connector
  4. Operating Voltage: DC 3.7V-5V (Please note: The positive supply voltage VCC on the board is connected to the VCC on the WS2812 3PIN connector. Therefore, if your light bar / lamp ring requires 5V power, then use DC 3.7V-5V power supply.)
  5. Supports 3.7V lithium battery

Package includes:

1x Controller
