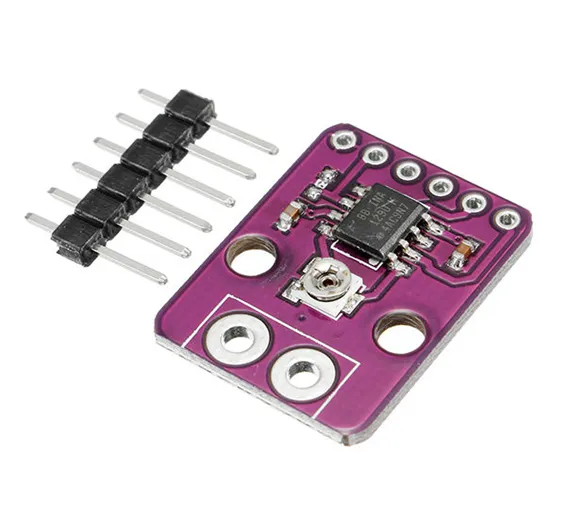

CJMCU-29 INA129 High Precision Low Power Instrumentation Amplifier Module
Other Modules

CJMCU-29 INA129 High Precision Low Power Instrumentation Amplifier Module

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: SB122,IMP20,Th5,KRT525

Rs.850 Rs. 1063

CJMCU-29 INA129 High Precision Low Power Instrumentation Amplifier Module is low-power, general-purpose instrumentation amplifiers offering excellent accuracy.The versatile three-operational-amplifier design and small size make them ideal for a wide range of applications. Current-feedback input circuitry provides wide bandwidth even at high gain. A single external resistor sets any gain from 1 to 10000. The INA128-HT provides an industry-standard gain equation; the INA129-HT gain equation is compatible with the AD620. The INA128-HT and INA129-HT are laser trimmed for very low offset voltage (25 μV Typ) and high common-mode rejection (93 dB at G ≥ 100). These devices operate with power supplies as low as ±2.25 V, and quiescent current of 2 mA, typically. Internal input protection can withstand up to ±40 V without damage. Texas Instruments' high-temperature products use highly optimized silicon (die) solutions with design and process enhancements to maximize performance over extended temperatures. The INA129-HT is available in 8-pin ceramic DIP and 8-pin ceramic surface-mount packages, specified for the –55°C to 210°C temperature range. The INA128-HT is available in an 8-pin SOIC-8 surface-mount package, specified for the –55°C to 175°C temperature range. Package included: 1 x CJMCU-29 INA129-HT High Precision Low Power Instrumentation Amplifier Module
