1.5A Mini Dual Channel DC Motor Driver Module L298N PWM Speed in Pakistan

Condition: 10/10
Availability: In Stock
Share:     Faceook Twitter

SKU: B84,D191,IMP,50Th30,KRT117,N07

Rs.120 Rs. 150

1.5A Mini Dual Channel DC Motor Driver Module L298 or L298N PWM Speed Controller is newly designed motor driver module for diy robotics projects.This Mini Dual Channel DC Motor Driver Module L298N PWM Speed Controller module is ideal for use in the battery-powered smart car, toy cars, robots. Supply voltage 2V ~ 10V can drive two DC motors or 4-wire 2-phase stepper motors, can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed.

Features:

1.The dual H-bridge motor driver can drive two DC motors or a 4-wire two-phase stepper motors 2.Built-in TSD, without worrying about motor stall 3.Ultra-small size, suitable for assembly and car

Specification:

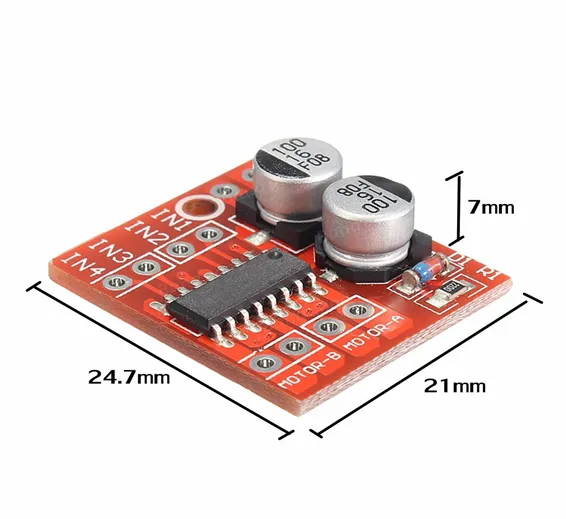

1.Module supply voltage: DC 2V-10V 2.Signal input voltage: DC 1.8-7V 3.Single working current: 1.5A 4.Peak current up to 2.5A 5.Low standby current (less than 0.1uA) 6.Built-in common conduction circuit, the input terminal vacant, the motor does not malfunction 7.Size: 24.7 x 21 x 7mm 8.Mounting hole diameter: 2 mm

Package includes:

1 x Mini dual channel DC motor driver module
