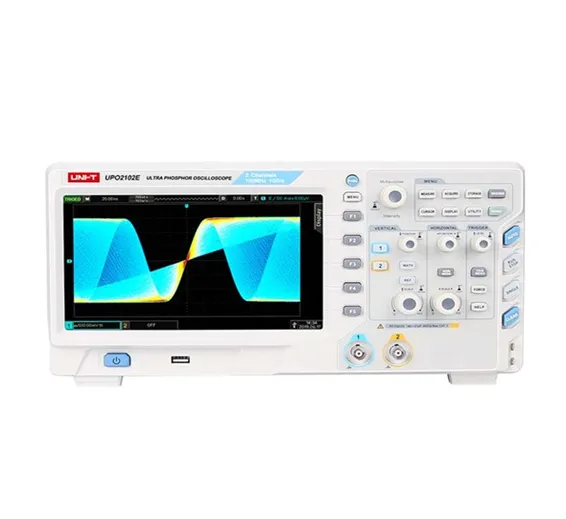

UNI-T 2 Channel UPO2102E Ultra Phosphor Oscilloscope
Oscilloscope

UNI-T 2 Channel UPO2102E Ultra Phosphor Oscilloscope

Condition: New
Brand: UNI-T
Availability: In Stock
Share:

SKU: TCBOX89

Rs.122000 Rs. 152500

The UPO2102E oscilloscope is a digital oscilloscope with Ultra Phosphor technology from the UPO2000E series. The UPO2102E oscilloscope offers 2 channels with the same characteristics. It is also equipped with sampling rate of 1 GS/s. This is amply sufficient for a bandwidth that is 100 MHz (unlike the lower versions of UPO2072CS, UPO2074CS, UPO2072E and UPO2074E, which are only up to 70 MHz). It is a multifunctional, high-performance oscilloscope that is easy to use, with very good technical specifications. It features a 800 x 480 pixel display. Supports USB storage and PC communication via Plug and play USB. Compared to the previous version UPO2102CS differs in new software (firmware).


Features of UNI-T 2 Channel UPO2102E Ultra Phosphor Oscilloscope:

  • 100MHz bandwidth
  • number of channels 2
  • sampling 1GS / s
  • max memory depth 56Mpts (per channel) (previously 28Mpts per channel)
  • waveforms per second up to 80,000 wfms/s (formerly 50,000 wfms/s)
  • time base range 5ns/div - 50s/div
  • input coupling (1MΩ ± 2%) // (20pF ± 3pF)
  • verical axis 1mV/div - 20V/div (1MΩ)
  • DC gain accuracy ± 3%
  • number of saved waveforms 65000
  • trigger : Edge, Window, Runt, Time Out, Nth Edge, Delay, Duration, Setup / Hold, Pulse Width, Slope, Video, Pattern, RS232 / UART, I2C, SPI
  • mathematical operations with waveforms : A + B, A-B, AxB, A / B, FFT, Logic operation, Editable Advanced, Filter
  • automatic Measurement : Max, Min, High, Low, Middle, Pk-Pk, Ample, Mean, Cycle Mean, RMS, Cycle RMS, Cycle Area, OverShoot, PreShoot, Period, Freq, Rise, Fall, + Width, -Width, + Duty, -Duty, RiseDelay, FallDelay, Phase, FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF
  • number of measurements : 5 simultaneous measurements
  • statistics : Mean, Max, Min, standard deviation, number of measurements
  • frequency counter : 6 bits
  • standard interfaces : USB-Host, USB-Device, LAN, AUX (Trig Out, Pass / Fail)

Technical Specifications of UNI-T 2 Channel UPO2102E Ultra Phosphor Oscilloscope:

  • power supply : 100V-240V AC, 50 / 60Hz
  • display : 8 inches, 800x480
  • weight : 3.5kg
  • size : 336x164x108mm

Package Include:

  • 2pc probe (with switchable divider 1x, 10x)
  • detachable three-wire power cable
  • USB cable
  • quick installation instructions with a link to the manufacturer's website
