UNI-T UPO1104 100MHz 4Ch Digital Oscilloscope
Oscilloscope

UNI-T UPO1104 100MHz 4Ch Digital Oscilloscope

Condition: New
Brand: UNI-T
Availability: In Stock
Share:
  • The UPO1104 digital oscilloscope is equipped with cutting-edge digital 3D tech known as Ultra 2.0.
  • 100MHz, 2 GSa/s, 4 CH, Memory Depth: 56 Mpts, 500,000 wfm/s, 7in display

SKU: TCBOX87

Ask Price

UNI-T UPO1104 100MHz 4Ch Digital Oscilloscope

Discover the power of innovation with the Uni-T UPO1104 Digital Phosphor Oscilloscope! This dynamic and budget-friendly instrument is crafted to elevate your electronic and electrical projects across diverse domains. Whether you’re diving into electronic design, troubleshooting, education, or industrial innovation, the UPO1104 stands ready with its advanced features and cutting-edge technology. Unleash your potential and redefine what’s achievable in your projects with the versatility of the UPO1104!

UPO1104 Specifications

  • Impressive Bandwidth: 100MHz
  • Versatile Analog Channels: 4
  • Rapid Real-Time Sample Rate: 2GSa/s
  • Extensive Max. Memory Depth: 56Mpts
  • Exceptional Waveform Capture Rate: 500,000 wfms/s
Feature Specification
Model Number UPO1104
Scope Type DSO
Bandwidth 100MHz
Channels 4Ch
Scope Sample Rate 2.0GSa/S
Memory Depth 56Mpts
Refresh Rate 500,000wfms/s
Logic Pod Included false
Signal Generator Function false
Display Size (in) 7in
Touchscreen false
Shipping Dimmensions (L x W x H) 16 in x 9 in x 11 in
Shipping Weight 6 lb
Documents English download guide, multi-language safety manual, calibration report (COC)

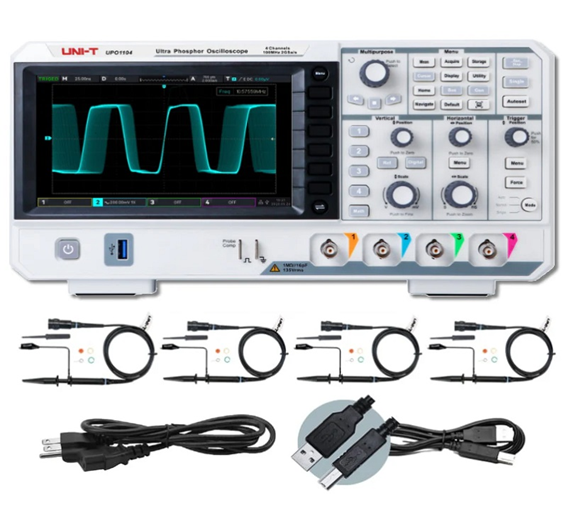

Included Accessories Power cord, USB2.0 printing cable, Oscilloscope probe (UT-P04)*4

Catered to Your Research / Education Needs

Embark on a Technological Journey with the UPO1000 Series: Featuring an independent DVM module, dynamic trigger and bus decoding functions, and full-memory hardware real-time decoding, this series is your gateway to exploring diverse applications across communication, semiconductor, computer, integrated circuit design, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, and research and development/education. Dive into versatility like never before and enhance your learning experience with the UPO1000 Series!



What Makes Uni-T UPO1104 Stand Out

Exceptional Storage Capacity

Experience an exceptional capacity for capturing and preserving intricate waveform details with the UPO1000 series, featuring a remarkable maximum storage depth of 56Mpts. This extensive storage capability, coupled with the system’s dedication to capturing both overall patterns and intricate waveform details, showcases its advanced prowess in delivering a thorough and nuanced signal analysis.

Accurate Frequency Test

Elevate your learning journey with the UPO1000 Series: Empowered with 1Mpts FFT sampling points, this oscilloscope places the capability of in-depth frequency domain signal analysis at your fingertips. Tailor spectrum analyzer functions such as frequency range, detection mode, and spectrum marking, equipping you with the essential tools for a comprehensive exploration of signals.

Intuitive Navigation Functions

Activate the “Cursor” function for real-time measurement of waveform parameters. The cursor function measures time and voltage across various channels simultaneously, while navigation functions include time navigation, marker navigation, and segment navigation.

Triggering Serial Bus and Decoding Hardware for Engineers

Ignite real-time insights with Serial Bus Trigger and Hardware Decoding designed for engineers. The integration of cutting-edge hardware decoding technology showcases our commitment to innovation, enabling the instantaneous decoding of information. This forward-thinking approach paves the way for swift and efficient data processing, underscoring our dedication to remaining at the forefront of technological advancements in engineering solutions.

Waveform Examinations with High Precision

Experience unparalleled precision with the UPO1000 series! Featuring an impressive 56M sampling points per channel, this cutting-edge oscilloscope excels at maintaining a high sampling rate across a wide time base range. Dive into detailed waveform examinations while retaining a comprehensive view, elevating your capability to effortlessly capture and analyze even the most intricate waveforms.

Ultra Phosphor 2.0

Equipped with the innovative digital 3D technology, Ultra Phosphor 2.0, the UPO1000 series offers three bandwidth levels (50MHz/100MHz/200MHz) and a real-time sampling rate of 2GSa/s. With 4 channels as standard, it sets a new standard in digital oscilloscope performance.

Don’t miss out on this opportunity to enhance your projects with the exceptional performance of the UPO1000 series! This Digital Phosphor Oscilloscope Series offers engineers and enthusiasts an unparalleled tool to tackle complex tasks with confidence. Its versatile capabilities redefine possibilities, providing customers with a reliable instrument to enhance precision and efficiency in their work. By investing in the UPO1000 series, customers gain access to cutting-edge technology that empowers them to capture the essence of innovation and unlock the potential for groundbreaking advancements in their projects.
