Semiconductor ICs

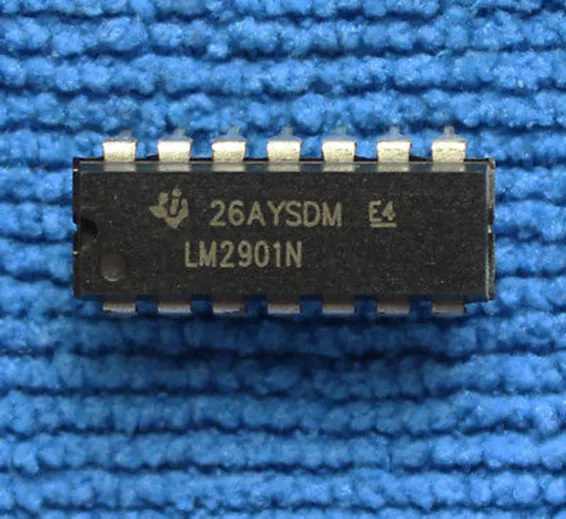

Differential Comparator IC LM2901N

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: B413,TMD,Th5,KRT

Rs.70 Rs. 88

Best Online Shopping website for LM2901N 14 Pin voltage Differenial Comparator ic . Here you get best LM2901N 14 Pin voltage Differenial Comparator ic which is similar to LM339 Ic and also named as op amp Comparator ic in reasonable price in in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Multan, Quetta , Faisalabad and all over Pakistan

A comparator is a device which compare two voltages or currents and output a digital signal indicating which is larger .The LM2901N devices consist of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible, as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.

Features:

  • Wide Supply Ranges
    • Single Supply: 2 V to 36 V
    • (Tested to 30 V for Non-V Devices and
    • 32 V for V-Suffix Devices)
    • Dual Supplies: ±1 V to ±18 V
    • (Tested to ±15 V for Non-V Devices and
    • ±16 V for V-Suffix Devices)
  • Low Supply-Current Drain Independent of
  • Supply Voltage: 0.8 mA (Typical)
  • Low Input Bias Current: 25 nA (Typical)
  • Low Input Offset Current: 3 nA (Typical) (LM139)
  • Low Input Offset Voltage: 2 mV (Typical)
  • Common-Mode Input Voltage Range
  • Includes Ground
  • Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±36 V
  • Low Output Saturation Voltage
  • Output Compatible With TTL, MOS, and CMOS

Pin Configuration:

Datasheet:

LM2901 Quad Differential Comparators datasheet (Rev. U)

Package Include:

1x LM2901N Differenial Comparator
