Arduino Nano V3 Arduino Nano

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: B67,D149,IMP100,Th100,KRT116,N24

Rs.550 Rs. 688

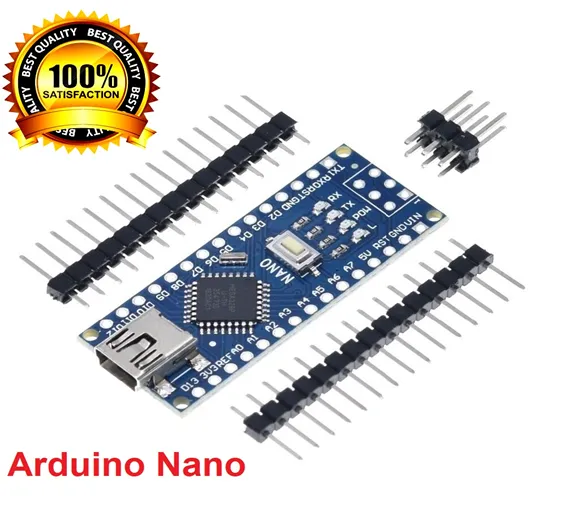

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). Arduino Nano has more or less the same functionality of the Arduino UNO but in a different package. Arduino Nano lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.

Specifications of Nano 3.0 Controller Compatible For Arduino Nano CH340 USB Driver:

  1. Microcontroller : ATmega328 (arduino nano).
  2. Operating Voltage (logic level) : l5 V.
  3. Input Voltage (recommended) : 7-12 V.
  4. Input Voltage (limits) : 6-20 V.
  5. Digital I/O Pins : 14 (of which 6 provide PWM output).
  6. Analog Input Pins : 8.
  7. DC Current per I/O Pin : 40 mA.
  8. Flash Memory : 16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB used by boot loader.
  9. SRAM : 1 KB (ATmega168) or 2 KB (ATmega328).
  10. EEPROM : 512 bytes (ATmega168) or 1 KB (ATmega328).
  11. Clock Speed : 16 MHz.
  12. Dimensions : 0.73" x 1.70".
  13. Length : 45 mm.
  14. Width : 18 mm.
  15. Weigth : 5 g.

Features of Arduino Nano:

  1. Automatic reset during program download
  2. Power OK blue LED
  3. Green (TX), red (RX) and orange (L) LED
  4. Auto sensing/switching power input
  5. Small mini-B USB for programming and serial monitor
  6. ICSP header for direct program download
  7. Standard 0.1” spacing DIP (breadboard friendly)
  8. Manual reset switch

Related documents:

  1. IC CH340G Datasheet
  2. IC Atmel ATmega 328 Datasheet

Package includes:

  • 1 x Arduino Nano V3 Arduino Nano
