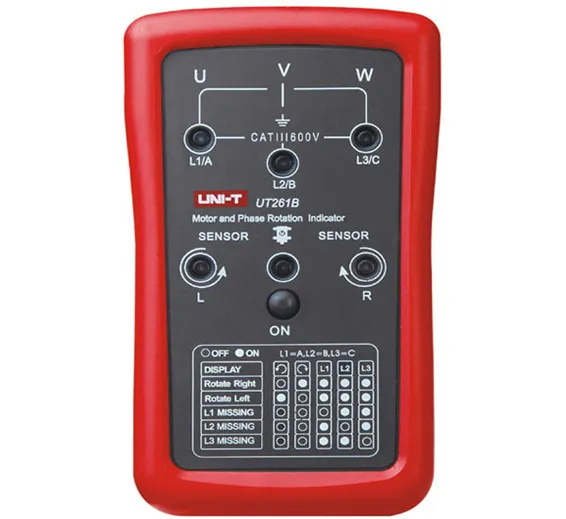

UNI T Phase Sequence Motor Rotation Indicator Meter UT261B
Other Meters

UNI T Phase Sequence Motor Rotation Indicator Meter UT261B

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only


Ask Price

UNI-T Motor Rotation Indicator Meter UT261B is used for determining 3-phase power phase sequence, missing phase indication, and motor phase rotation (UT261B). UT261B sequence indicator can measure AC voltage of 90~600V respectively. This three-phase rotation meter can operate in the frequency range of 15~400Hz. This 3 phase sequence checker is a durable device which can withstand impact from 2 meters' s height. Test leads with protective tubing are included in optional accessories. It is easy to use and more reliable. UNI-T UT261B is now available in Pakistan

Features Of UNI-T UT261B 3 Phase Sequence Tester Motor Rotation Indicator:

  • The UT261B motor and phase rotation indicator is used to test phase sequence and motor rotation is a necessary tool in maintaining or repairing the 3-phase system or motor.
  • The UT261B motor and phase rotation indicator show the result by the LED indicators,
  • Phase Sequence Indication: LED
  • Missing phase Indication: LED,
  • Motor Rotation Indication: LED
  • The motor and phase rotation indicator is sturdy both inside and outside, can keep intact while fallen from a high height, sturdy and durable, wearing longer.
  • The motor and phase rotation indicator could test motor under AC voltage from 90 V to 600 V, the frequency range (Hz) 15 Hz to 400 Hz, and the test current less than 3 mA.
  • With multi-function, small size and lightweight, this meter has high accuracy and easy to operate, will provide convenience for you in the motor control system.

Specifications Of Phase Detector UNI-T UT261B Phase Sequence Tester Meter:

  1. AC voltage (V) Range: 90V~600V
  2. Frequency (Hz) Range: 15Hz~400Hz
  3. Test Current (A) Range: < 3mA
  4. Phase Sequence Indication: LED
  5. Missing Phase Indication: LED
  6. Motor Rotation Indication: LED
  7. Power: 9V Battery (6F22)
  8. Product Color: Red and Gray
  9. Product Size: 70mm x 75mm x 30mm

Package Includes:

  • 1 x UNI-T UT261B Phase Sequence and Motor Rotation Indicator Meter
  • 3 x Test leads
  • 3 x Alligator clips
  • 1 x 9 V battery
  • 1 x User manual
  • 1 x Carrying bag
