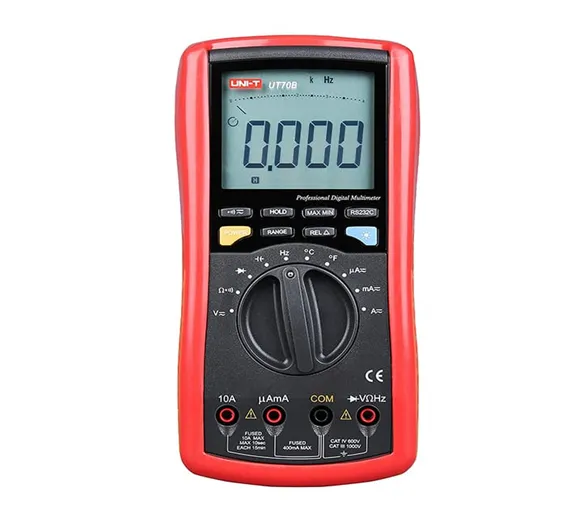

Portable digital multimeter UNI-T UT70B with advanced design. UT-70B multimeter is a hand-held digital instrument featuring versatile functions, reliable performance, large LCD and novel structure. It can measure AC&DC voltage, AC&DC current, resistance, capacitance, inductance, temperature, frequence, diode, transistor hFE, continuity and Logic Level. The electric meter tester also offers data hold, MAX, backlight, auto polarity display, over-range indication, low battery indication, full-range overload protection and auto power off.
Features Of Digital Multimeter UNI-T UT70B:
- Functions:
-
- AC/DC current and voltage
- resistance
- capacitance
- frequency
- temperature (ºC or ºF)
- continuity test (with buzzer)
- diode test
- Auto ranging
- Fused 10 A range
- Data Hold function
- Max/Min mode
- Relative mode
- Analogue bar graph
- Sleep mode
- Low battery indication
Specifications Of UNI-T UT-70B Portable Handheld Digital Multimeter:
- DC Voltage: 400mV / 4V / 40V / 400V / 1000V
- DC voltage accuracy: +/- (0.8%+1)
- AC Voltage: 4V / 40V / 400V / 750V
- AC voltage accuracy: +/- (1%+5)
- DC Current: 400A / 4000uA / 40mA / 400mA / 10A
- DC current accuracy: +/- (1%+2)
- AC Current: 400µA / 4000µA / 40mA / 400mA / 10A
- AC current accuracy: +/- (1.5%+5)
- Resistance: 400 Ohm / 4 kOhm / 40 kOhm / 400 kOhm / 4 MOhm / 40 MOhm
- Resistance accuracy: +/- (1%+2)
- Capacitance: 4nF / 40nF / 400nF / 4uF / 40uF / 400uF / 4mF / 40mF
- Capacitance accuracy: +/- (4%+3)
- Frequency: 4kHz / 40kHz / 400kHz / 4MHz / 40MHz / 400MHz
- Frequency accuracy: +/- (0.1%+3)
- Temperature: from -40 to +1000°C, from -40 to +1832°F
- Temperature accuracy: +/- 1%+3 (°C), +/-1%+4 (°F)
- RPM: 40kRPM
- RPM accuracy: +/- (0.1%+3)
- Max. display: 3999 (62 x 53mm)
- Power: 9V bat. (6F22)
- Product size: 195 x 90 x 40mm
- Product weight: 560g
Package includes:
- 1 x UNI-T UT70B Digital Multi-Purpose Meter
- 2 x Crocodile clips
- 1 x Drop-like K-type temperature probe
- 1 x RS232 cable
- 2 x test leads
- 1 x Software CD
