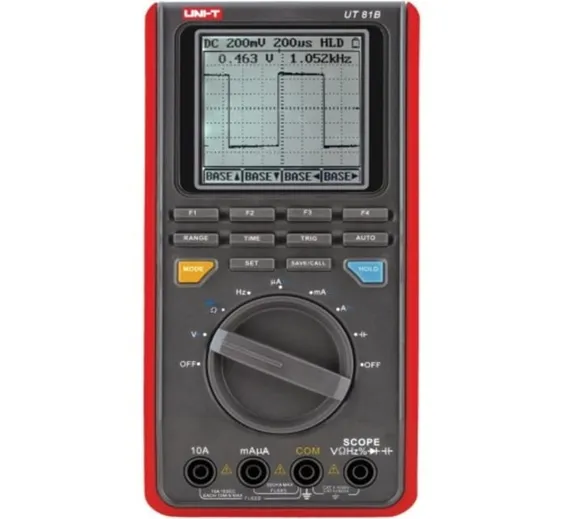

Handheld Digital Scope Multimeter UNI T UT81B

Condition: New
Availability: In Stock
Advance Payment Only
Share:     Faceook Twitter

SKU: TMD1,Th6,KRT

Rs.27675 Rs. 34594

UNI-T UT81B series handheld digital oscilloscope multimeters combine oscilloscope and a digital multimeter in one. Oscilloscope measurement mode includes signal input, data processing, auto measure, waveform storage, and transfer. Multimeter mode features AC/DC voltage and current, resistance, diode, continuity, frequency, duty ratio, and capacitance. Portable Storage Oscilloscope is an economical instrument with the functions of oscilloscope and multimeter. Handheld Digital CRO is an ergonomic, lightweight, universal instrument designed for engineers. Mini Pocket Oscilloscope is suitable for field testing and analyzing time-based voltage signals in a mobile environment

Features Of UNI-T UT81B digital Scope Multimeter:

  • Display Count: 3999
  • Bandwidth 8MHz
  • The real-Time Sample rate is 40MS/s
  • Auto Range
  • Duty Cycle: 0.1 ~ 99.9%
  • Diode
  • Auto Power Off
  • Continuity Buzzer
  • Display: 160 x 160 Monochrome
  • Trigger Types: Free Run/Normal/Single Shot
  • Memory: 10 screens and setups
  • Contrast and Bright Setup
  • Low Battery Indication
  • USB Interface
  • LCD Backlight
  • Input Impedance for DCV: around 10MΩ

Specifications Of Portable Digital storage Oscilloscope Comes Multimeter DSO:

  1. Power: 1.5V battery (R6) x 4
  2. LCD Size: 60mm x 60mm
  3. Color: Red and Black
  4. Dimension: 200mm x 100mm x 48mm

Package includes:

  • 1x Scope Multimeter
  • 1x USB interface cable
  • 4x Batteries
  • 1x test lead
  • 1x Alligator clip
