ET8101 True-RMS Digital Multimeter AC/DC Voltage Current Tester with Resistance Capacitance Diode and NCV Measurement

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: TMD,Th,KRT138

Rs.1540 Rs. 1925

Product Description

ET8101 Mini Pocket Type Digital Multimeter AC/DC Voltage Current Tester with Resistance, Capacitance, Diode Measurement

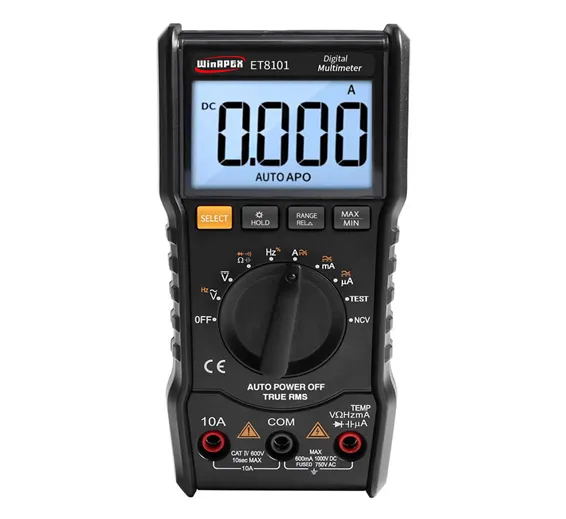

WINAPEX ET8101
6000 display full-featured automatic range multimeter
Special feature:
NCV (induction pen)
LIVE WIRE TEST (zero fire wire judgment)
True RMS
Data lock
Backlight (can be long or short)
maximum value minimum value
Automatic shut-down
Low voltage display
Small and easy to carry
Basic functions: AC/DC voltage, AC/DC current, resistance, capacitance, buzzer, diode, frequency/duty cycle


One, Overview
The 6000counts is a pocket-sized 3 5/6-bit automatic digital instrument. It has a stable performance, high precision, high reliability clear readings, and overload protection. With AAA 1.5Vbattery-driven, the instrument uses a large-screen LCD Display, boost power supply, even in the 2.3V low battery edge, it can guarantee the backlight high brightness, the table is easy to carry, is a vast number of users extremely like the instrument, the backlight can be bright can be automatically turned Off after 15 seconds. This series of instruments can be used to measure the DC voltage and AC voltage DC current and AC current, resistance, capacitance diode, continuity test, zero fire wire judgment, frequency measurement and true RMS measurement and other parameters. Is An ideal tool for the laboratory, factory, radio enthusiasts and families.
Second, Safety precautions
This series of instruments is designed to comply with IEC1010 (International Electro-technical Commission promulgated safety standards), before use, please read the safety precautions.
1. When measuring the voltage, please input the limit voltage of DC 1000V or AC 750V rms.
2. The voltage below 36V is safe voltage. When measuring above 36V DC and 25V AC voltage, check whether test pen is reliable contact or right connected or good insulation properly, whether insulation is good and so on, in order to avoid electric shock.
3. When change function and range, test pen should leave the test point.
4. The series of instruments if there is full-range protection, but for safety reasons, you still should pay more attention.
5. When measuring current, do not input batteries more than 10A.

DC Voltage (DCV)

     Accuracy

Range

   6000counts

Resolution

6V

  ±(0.5%+3)

0.001V

60V

0.01V

600V

0.1V

1000V

  ±(0.8%+10)

1V

AC Voltage (ACV)

        Accuracy

Range

 6000counts

Resolution

6V

±(0.8%+3)

0.001V

60V

0.01V

600V

0.1V

750V

±(1.2%+10)

1V

DC Current (DC m A)

       Accuracy

Range

        6000counts

Resolution

60mA

       ±(1.2%+10)

10uA

600mA

100uA

DC Current (DC u A)

       Accuracy

Range

        6000counts

Resolution

600uA

       ±(1.2%+10)

0.1uA

6000uA

1uA

AC Current (AC m A)

      Accuracy

Range

6000counts

Resolution

60mA

    ±(1.2%+10)

10uA

600mA

100uA

AC Current (Ac u A)

       Accuracy

Range

   6000counts

Resolution

600uA

  ±(1.2%+10)

0.1uA

6000uA

1uA

AC/DC 10A Current (DC/ACA)

        Accuracy

Range

6000counts

Resolution

  6A

    ±(2.0%+30)

0.01A

  10A

0.01A

Resistance(O)

 Accuracy

Range

   6000counts

Resolution

 600O

±(0.8%+5)

0.1O

6kO

±(0.8%+3)

1O

60kO

10O

600kO

100O

6MO

1kO

40MO

±(2.5%+3)

10kO

Capacitance (C)

   Accuracy

Range

   6000counts

Resolution

60nF

±(3.5%+20)

10pF

600nF

100pF

6uF

1nF

60uF

10nF

600uF

100nF

6mF

±(5%+3)

11uF

30mF

10uF

Frequency Measurement:

     Accuracy

Range

6000counts

  Resolution

10Hz

±(0.1%+3)

0.01Hz

100Hz

0.1Hz

1kHz

1Hz

10kHZ

10Hz

100kHz

100Hz

1MHz

1kHz

10MHz

10kHz


Characteristics

1. General Characteristics
1-1.Display, liquid crystal display (LCD);
1-2.Maximum display: 5999 (5 5/6) bits automatic polarity display;
1-3.Measurement: double integral A / D conversion;
1-4.Sampling rate: about 3 times per second;
1-5.Overrange display: the most significant bit was "0L";
1-6.Low voltage display:
1-7.Working environment:(0~40)?,relative humidity<80%;
1-8.Power supply: AAA 1.5V battery(Does not include)
1-9.Volume (size):142×70×32mm(L×W×H);
1-10.Weight:about205g(including 1.5V battery);
1-11.Attachment: a manual, a certificate, a box, a pair of pen
