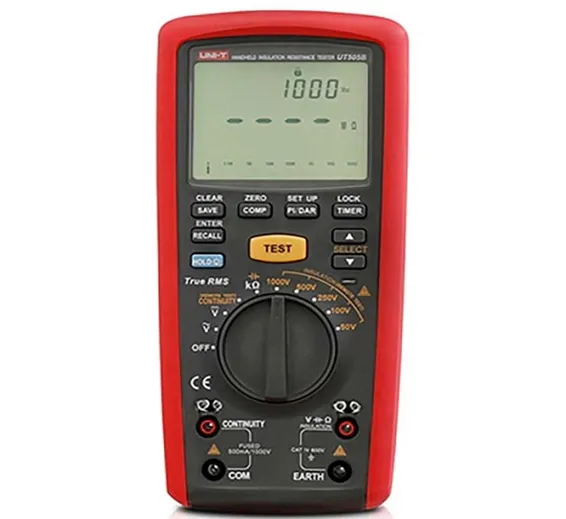

UNI T UT505B Handheld Insulation Resistance Tester
Other Meters

UNI T UT505B Handheld Insulation Resistance Tester

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only
Share:

UT505 series (UT505A, UT505B) handheld true RMS insulation resistance testers combine features of a digital multimeter and insulation resistance tester. Aside from the  typical multimeter functions, these meters can also measure insulation resistance, PI, DAR, and automatically calculate resistance ratio to determine the insulation status. UT505 can be used in insulation resistance testing of precision tools, including motors, cables, transformers, switches, electrical appliances, and insulated materials.

SKU: TMD1,Th6,KRT

Ask Price

UNI T Insulation Resistance Tester UT505B handheld true RMS insulation resistance testers combine features of a digital multimeter and insulation resistance tester. UT-505B true RMS insulation resistance meter, this meter can also measure insulation resistance, PI, DAR, and automatically calculate the resistance ratio to determine the insulation status. This megger insulation tester can be used in insulation resistance testing of precision tools, including motors, cables, transformers, switches, electrical appliances, and insulating materials. UNI-T UT505B digital insulation tester is now available in Pakistan.

Features Of UNI-T UT505B True RMS Insulation Resistance Multimeter:

  • Show the actual value of insulation voltage 50V/100V/250V/500V/1000V.
  • Insulation resistance can be tested to 200GΩ.
  • Measured absorptance / polarization index ,low –resistance test (100Ω).
  • Step voltage regulation, the function of remote detection test lead and comparison.
  • 600V AC/DC voltage,99 data logging.
  • Frequency(Hz) and Capacitance(F) test.
  • Safety level: CAT III 1000V CAT IV 600V.
  • Brand-new designed, portable and easy to control.

Specifications Of UNI-T UT505B Handheld Insulation Resistance Tester Megohmmeter:

  1. Voltage Output: 50V / 100V / 250V / 500V / 1000V
  2. Insulation Resistance:
  3. 50V: 0.00MΩ-0.99GΩ / 1.00GΩ~10.0GΩ
  4. 100V: 0.00MΩ-0.99GΩ / 1.00GΩ~20.0GΩ
  5. 250V: 0.00MΩ-0.99GΩ / 1.00GΩ~50GΩ
  6. 500V: 0.00MΩ-0.99GΩ / 1.00GΩ~100GΩ
  7. 1000V: 0.00MΩ-0.99GΩ / 1.00GΩ~200GΩ
  8. Voltage Measurement: 0~600V(AC) 0~600V(DC)
  9. Resistance: 0.001kΩ~10MΩ
  10. Frequency Measurement: 45Hz~1kHz
  11. Capacitance: 0.1nF~500μF
  12. Display Count: 6000
  13. Auto Range: Yes
  14. True RMS: Yes
  15. Step Voltage: 10% Steps at 50% ~ 120% of range
  16. DAR: 60s/15s and 60s/30s
  17. PI: Yes
  18. Timer: Yes
  19. Fuse Self Test: Yes
  20. High Voltage Indication: Yes
  21. Auto Discharge: Yes
  22. Analogue Bar Graph: Yes
  23. Auto Power Off: Yes
  24. Continuity Buzzer: Yes
  25. Data Hold: Yes
  26. Data Storage: 99
  27. Measurement Comparison: Yes
  28. LCD Backlight: Yes
  29. Low Battery Indication: Yes
  30. Power Supply: 6 * 1.5V AA Battery (not included)
  31. Item Size: 22 * 10 * 4.5cm / 8.6 * 3.9 * 1.8in
  32. Item Weight: 507g / 17.9oz
  33. Package Size: 30 * 17.5 * 6.5cm / 11.8 * 6.9 * 2.6in
  34. Package Weight: 984g / 34.7oz

Package Includes:

  • 1 x Handheld Insulation Resistance Tester UNI-T UT505B
  • 2 x Test Probes
  • 2 x Alligator Clips
  • 2 x Test Leads
  • 1 x User Manual
  • 1 x Carrying Case
