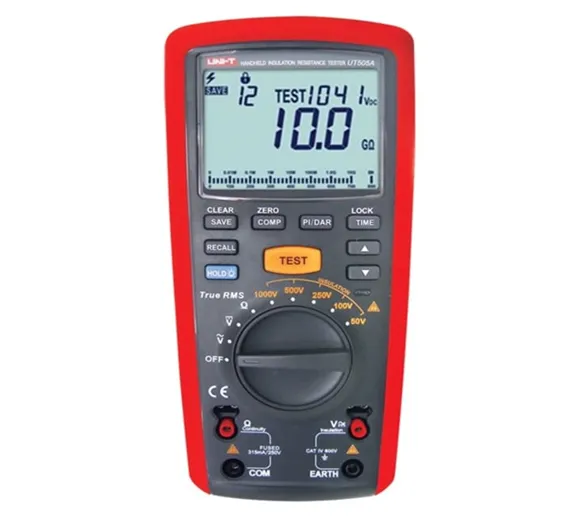

UNI T Handheld Insulation Resistance Meter UT505A
Other Meters

UNI T Handheld Insulation Resistance Meter UT505A

Condition: New
Availability: In Stock
Advance Payment Only
Share:     Faceook Twitter

UT505 series (UT505A, UT505B) handheld true RMS insulation resistance testers combine features of a digital multimeter and insulation resistance tester. Aside from the  typical multimeter functions, these meters can also measure insulation resistance, PI, DAR, and automatically calculate resistance ratio to determine the insulation status. UT505 can be used in insulation resistance testing of precision tools, including motors, cables, transformers, switches, electrical appliances, and insulated materials.

SKU: TMD1,Th6,KRT

Rs.24300 Rs. 30375

UNI-T UT505A multimeter is handheld true RMS insulation resistance tester combines features of a digital multimeter and insulation resistance tester. Aside from the typical multimeter functions, this insulation test meter can also measure insulation resistance, PI, DAR, and automatically calculate the resistance ratio to determine the insulation status. UT-505A digital insulation tester megger can be used in insulation resistance testing of precision tools, including motors, cables, transformers, switches, electrical appliances, and insulating materials. UT505A digital megger tester is now also available in Pakistan.

Features Of Multimeter UNI-T UT505A Insulation Resistance Tester:

  • Measure the insulation resistance of electrical equipment up to 20.0GΩ.
  • Special low resistance measurement mode.
  • Zeroing button.
  • Large-size screen with bargraph.
  • AC/DC voltage measurements to 600V.
  • DAR and polarisation index function.
  • Comparison function.
  • Data storage function.
  • Automatic power off when left idle.

Specifications Of UNI-T UT505A Digital Handheld True RMS Megger Ohm Voltmeter Megohmmeter:

  1. Testing voltage: 50V / 100V / 250V / 500V / 1000V
  2. 50V 0.1MΩ ~ 50.0MΩ ± (3%+5)
  3. 100V 0.1MΩ ~ 100.0MΩ ± (3%+5)
  4. 250V 0.01MΩ ~ 200.0MΩ ± (1.5%+5)
  5. 500V 0.01MΩ~500MΩ ± (1.5%+5)
  6. 1000V 0.1MΩ ~ 2000MΩ ± (1.5%+5)
  7. 1000V 2GΩ ~ 9.9GΩ ± (10%+5)
  8. 1000V 10GΩ ~ 20.0GΩ ± (20%+5)
  9. Load current: 1mA ([email protected]Ω, [email protected]Ω, [email protected]Ω, [email protected]Ω, [email protected]Ω)
  10. Short circuit current: <2mA
  11. Low resistance: 0.01Ω ~ 20.00kΩ ± (1.5%+3) about 5.0V/>200mA
  12. DC voltage: 0-600V ± (2%+3)
  13. AC voltage: 0-600V (45Hz~1kHz) ± (2%+3)
  14. Step voltage: 10% steps at 50% ~ 120% of range
  15. Dielectric absorption index (DAR): 60s/15s and 60s/30s
  16. Polarization Index(PI): Yes
  17. Measurement comparison: Yes
  18. Timer: Yes
  19. High voltage indication: Yes
  20. Automatic range switching: Yes
  21. True RMS: Yes
  22. Auto range switching: Yes
  23. Continuity buzzer: Yes
  24. Low battery indication: Yes
  25. Data hold: Yes
  26. Data logging: 99 values
  27. Display backlight: Yes
  28. Power: 6x1,5V alkaline battery LR6
  29. Display size: 78x59mm
  30. Weight: 630g
  31. Size: 103x225x59 mm

Package Includes:

  • 1 x UNI-T UT505A Insulation Tester
  • 2 x Test Leads
  • 2 x Alligator Clips
  • 2 x Test Probes
  • 1 x User Manual
  • 1 x Carrying Case
