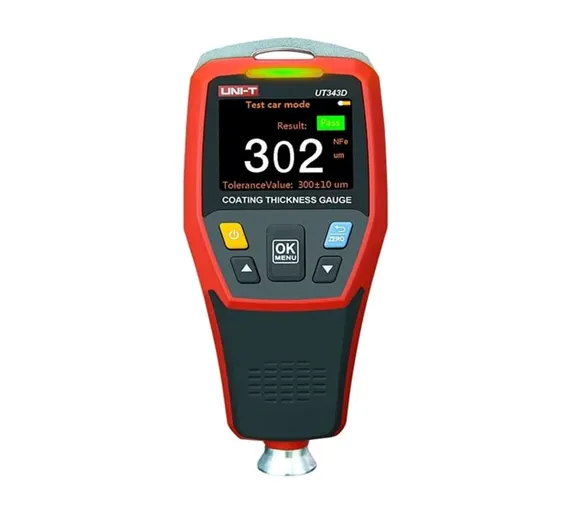

UNI T UT343D Coating Thickness Gauge Meter Tester
Other Meters

UNI T UT343D Coating Thickness Gauge Meter Tester

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only


Rs.29500 Rs. 36875

UNI-T UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This UT-343D coating thickness meter is designed with a unique quick test feature. This car paint thickness gauge, which allows users to set thickness range and using a 3-colour LED and audio alarm to quickly determine if coating being tested falls within the preset range, greatly increasing work efficiency. UT343 digital thickness gauge meter display is auto rotatable. This CE certified best car paint thickness gauge can store up to 500 sets of data for further analysis through the PC analytical software that is included. This thickness gauge tool is widely used in manufacturing, metal processing, aerospace, marine mechanics, rail transport, scientific research, quality supervision, and other industries.

Features Of UNI-T UT343D Coating Thickness Gauge:

  • Automatic identification of iron and non-ferrous substrates
  • The sensor uses diamond clamping technology, which is accurate, wear-resistant and stable.
  • Single point and two-point calibration to ensure measurement accuracy
  • Single point, multi-point quick judgment and prompt
  • Red, green and yellow warning lights
  • The screen display content is automatically rotated
  • 500 sets of storage data and USB data transmission

Specifications Of UNI-T UT343D Mini Coating Thickness Gauge Iron Matrix, Non-Ferrous Matrix Tester:

Specifications Range
Measuring range 0~1250um
Accuracy ±(3%H+1)um
Resolution 0.1um (0~99.9um); 1um (100~1250um)
Measurement method Single/Continuous
Measurement mode Max/Min/Avg
Metal type Ferrous/ non-ferrous
Display type 2.0-inches TFT LCD (320 x 240 pixels)
LCD brightness control
Auto rotatable screen
Unit conversion
Audio alarm
LED alarm
PC analysis software
USB communication
Quick test mode
Data storage  500 groups
Auto power off
Low battery indication
General Characterisitics
Power 1.5V AA battery (LR6) x 2
Display 48mm x 36mm
Product color Red and grey
Product net weight 175g
Product size 153.5mm x 64.5mm x 41mm
Standard accessories Micro USB interface cable, standard piece, batteries, cloth bag
Standard individual packing Gift box, English manual
Standard quantity per carton 20pcs
Standard carton measurement 355mm x 320mm x 195mm
Standard carton gross weight 7.5kg

Package Includes:

  • 1 x Coating Thickness Gauge
  • 1 x Micro USB Interface Cable
  • 1 x User's Manual
  • 1 x Carrying Bag
  • 1 x Hand Strap
