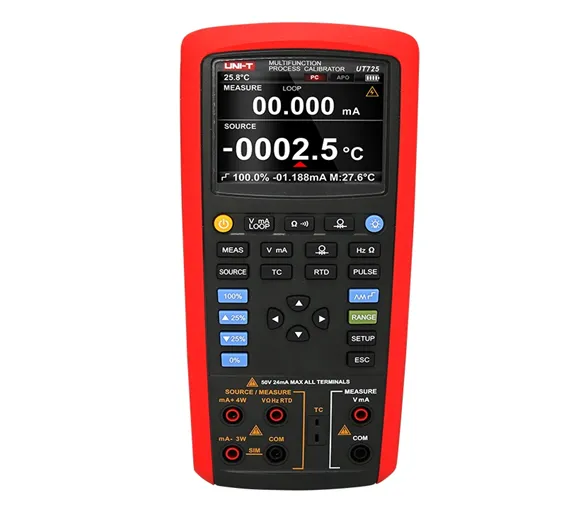

UNI-T UT725 Multifunction Process Calibrator
Other Meters

UNI-T UT725 Multifunction Process Calibrator

Condition: New
Brand: UNI-T
Availability: Out Of Stock
Advance Payment Only
Share:

The UT725 multifunction process calibrator combines with temperature process calibrator and loop process calibrator function. You can easily measure and source most of the process parameter: mA, volts, temperature, frequency, ohms in one tool.

SKU: TCBOX88

Ask Price

Features of UNI-T UT725 Multifunction Process Calibrator:

  • Step/ramp functions
  • Source and measure accuracy up to 0.02%
  • Rechargeable battery
  • Contrast adjustment
  • Auto power off (Time adjustable)
  • Stores and recalls setups
  • USB communication
  • Simultaneously measure and output different process signal in real time
  • Pressure measure with specified pressure modules, and sourcing pressure
  • Provides 24V loop power to transmitter while conducting mA current measurement at the same time

Technical Specifications

Type Range Accuracy
Certificates CE, RoHS
Measurement
DC voltage (V) 50mV/500mV/50V ±(0.02%+2)
DC current (mA) 20mA ±(0.02%+2)
Loop current (mA) 20mA ±(0.02%+2)
Resistance (Ω) 500Ω/5000Ω ±(0.05%+10)
Frequency (Hz) 100Hz/1kHz/10kHz/100kHz ±(0.01%+1)
Thermocouples R,S,K,E,J,T,N,B,L,U,XK,BP
RTDs Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120
Continuity test
Pulses (Hz) 1~15kHz (1~100000 periods)
Source accuracy
DC voltage (V) 100mV/1000mV/10V ±(0.02%+10)
DC current (A) 20mA/20mA(SIM) ±(0.02%+2)
Resistance (Ω) 400Ω/4000Ω/40kΩ ±(0.05%+10)
Frequency (Hz) 200Hz/2000Hz/20kHz/100kHz ±(0.01%+1)
Pulses (Hz) 100Hz/1kHz/10kHz ±1
Thermocouples R,S,K,E,J,T,N,B,L,U,XK,BP
RTDs Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120
Display count 20000
Operation temperature  -10°C~55°C
GENERAL CHARACTERISTICS
Power 1.2V x 6 AA rechargeable battery
Product net weight 650g
Product size 195mm x 95mm x 58mm
Standard accessory Test lead, USB cable, power adapter, temperature probe, English manual
