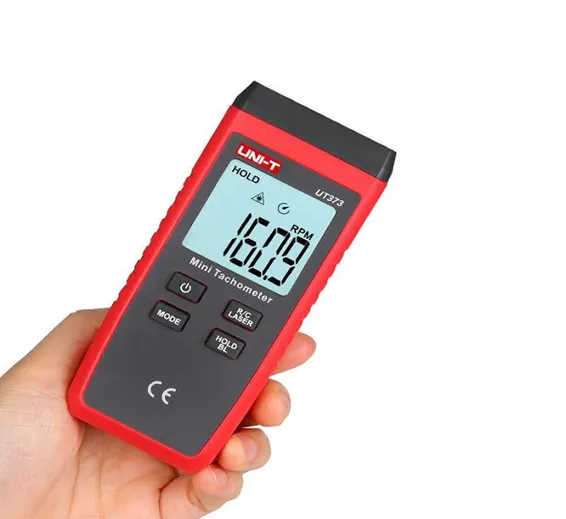

UNI T UT373 Mini Tachometer RPM Meter
Other Meters

UNI T UT373 Mini Tachometer RPM Meter

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only


Rs.3300 Rs. 4125

UNI T Mini Tachometer RPM Meter UT373 is a reliable digital non-contact tachometer used to measure the rotation speed of motors and other machines. UT-373 laser tachometer is able to display results in RPM or revolution count. This portable PRM measuring instrument is able to safely measure rotational objects through a non-intrusive method. The core design of this rpm counter is the microcontroller, photoelectric speed sampling processing, unique design makes it a superior performance tachometer.

Features Of UNI-T UT373 Mini Digital Non-contact Tachometer Laser RPM Meter:

  • Auto range.
  • Up to 99999 display; overload display, "OL".
  • RPM measurement and revolution count.
  • Max/Min, Data hold.
  • Singal trigger/laser-on indication.
  • Low battery/auto power-off indication.
  • LCD backlight.

Specifications Of UNI-T UT373 RPM Speed Measurement Meter Digital Laser Tachometer:

  1. RPM measurement range: 10.0~9999.9 RPM ±(0.04%+2), 10000~99999 RPM ±(0.04%+2)
  2. RPM measurement resolution: 0.1 to 1
  3. Counting measurement range: 0~99999 count
  4. Counting measurement resolution: 1 count (<10kHz, pulse width10 ~ 90%)
  5. Counting measurement accuracy: ±1 count
  6. Auto range: Yes
  7. Auto power off: Yes
  8. Low battery indication: Yes
  9. Laser-on indication: Yes
  10. Data hold: Yes
  11. Maximum/minimum: Yes
  12. Rotating speed/count function switching: Yes
  13. Overload indication: Yes
  14. LCD backlight: Yes
  15. Refresh rate: About 1s to 7s (depending on the speed, >120 rpm for 1s)
  16. Sensor type: Photodiodes and laser tubes
  17. Target distance: 50mm ~ 200mm
  18. Measuring angle: The angle between the laser and the surface being measured is less than 30°
  19. Display: 5-digit segment code; 99999 max display
  20. Drop test: 1m
  21. Working temperature and humidity: 0 ° C to 50 ° C (no more than 80%RH)
  22. Storage temperature and humidity: -20 ° C to + 60 ° C (no more than 80%RH)
  23. Protection rating: IP65
  24. Power supply: 3 1.5V batteries (AAA)
  25. Battery life: Continuous work for 12 hours
  26. Product colour: Red and grey
  27. Product weight: 85g (excluding battery)
  28. Product size: 183.8x56x34mm

Package Includes:

  • 1 x UNI T Mini Tachometer RPM Meter UT373

Best Online Shopping website for UNI T Mini Non-Contact Tachometer RPM Meter UT373 RPM Contactless Meter Best Laser Tachometer in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
