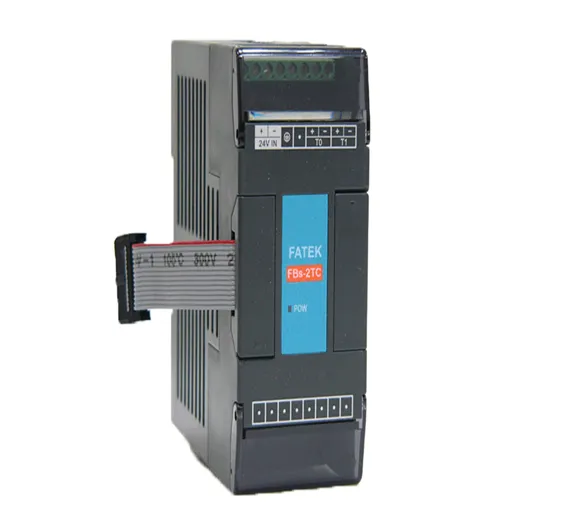

FATEK PLC FBs-2TC 2 Channel Thermocouple Temperature Input Module in Pakistan
SKU: RAWLIXFAT
FBs-TC2 is one of the temperature input modules of FATEK FBs series PLC. It provides 2 channels of thermo-couple temperature measurement input with 0.1 ? or 1 ? resolution. The scan rate for 0.1 ? resolution is 2 seconds, while the scan rate for 1 ? resolution is 1 second. The cold junction compensation is carried out inside the module, also it provides a wire broken detection feature. To give the user more choices for the selection of thermocouple type and in order to enhance the noise immunity, the isolation scheme is a per-channel basis. All the optional features of this module are software configurable, there are no hardware jumpers or switches for user to setup.
|
Specification |
FBs-2TC |
|
Number of input points |
2 points |
|
Sensor type and temperature measurement range |
Thermocouple Sensor: J (-200~1200°C) E (-190~1000°C) K (-190~1300°C) T (-190~380°C) R (0~1800°C) B (350~1800°C) S (0~1700°C) N (-200~1000°C) S ( 0~1700°C ) N (-200~1000°C) |
|
Temperature Compensation |
Built-in cold junction compensation |
|
Resolution |
0.1°C |
|
Temperature refresh time |
1 or 2 seconds |
|
Overall Precision |
± (1%+1°C) |
|
Isolation method |
Transformer(power) and photo couple(signal) isolation, 500VAC, 1 minute,isolation between each channel |
|
Power consumption |
24VDC -15%/+20%,2W max. |
|
Wiring mechanism |
3.81 mm European terminal block |
Data Sheet:
http://www.fatek.com/en/data/ftp/PLC/FBs_Datasheet/cat_TC2_en.pdf
Package Include:
1XFATEK PLC FBs-2TC
