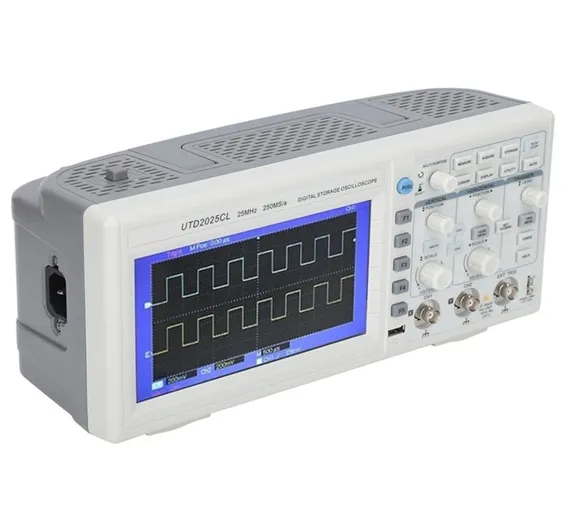

UNI T UTD2025CL Digital Storage Oscilloscope 2 Channel DSO
Oscilloscope

UNI T UTD2025CL Digital Storage Oscilloscope 2 Channel DSO

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only
Share:

SKU: RAWLIXDig

Ask Price

An oscilloscope is a laboratory instrument commonly used to display and analyze the waveform of electronic signals. In effect, the device draws a graph of the instantaneous signal voltage as a function of time.UTD2025C Oscilloscope is a two-channel portable device with 25MHz bandwidth and 200MS/s sampling rate. Digital Storage CRO is ergonomic, lightweight, universal instruments designed for engineers. Sampling Oscilloscope is suitable for field testing and analyzing time-based voltage signals in a mobile environment

Features Of UNI-T UTD2025CL Best Sampling Oscilloscope:

  • The dual analog channels width range of 1mV/div~20V/div.
  • 7 inches widescreen LCD displays.
  • Special Print Screen Feature.
  • Supports plug-and-play USB storage devices. Communication with and remote control of the computer through the USB device.
  • USB drive system software upgrade.
  • Storage of waveforms setups and interfaces waveforms and setups reproduction.
  • Automatic measurement of 28 waveform parameters.
  • Unique waveform recording and replay function.
  • Multilingual menu displays.

Specifications Of 2 Channel Oscilloscope DSO Scopemeter:

  1. Channels: 2
  2. Bandwidth: 25MHZ
  3. Sample Rate: 250MS/s
  4. Rise Time: ≤14ns
  5. Memory Depth: 25 kpts
  6. Waveform Acquisition Rate: ≥2000wfms/s
  7. Vertical Sensitivity: 1mV/div~20V/div
  8. Time-base Range: 10ns/div~50s/div
  9. Storage: Setup, Wave, Bitmap
  10. Trigger Modes: Edge, Pulse, Video, Alternate
  11. Interface: USB OTG,Pass/Fail
  12. Power: 100-240VAC, 40-440Hz
  13. LCD Size: 7 Inches 64K Color TFT LCD, 400×240
  14. Color: White and Grey
  15. Dimension: 306mm ×147mm × 122mm

Package Include:

  • 1x Oscilloscope
  • 2x Probe (1×,10× switchable)
  • 1x power cord
  • 1x USB cable

Best Online Shopping Website for Digital storage Oscilloscope UNI T UTD2025CL 2 channel DSO data analysis Oscilloscope in cheap price in Karachi Lahore Islamabad Rawalpindi Sukkur Peshawar Multan Quetta Faisalabad and all over Pakistan
