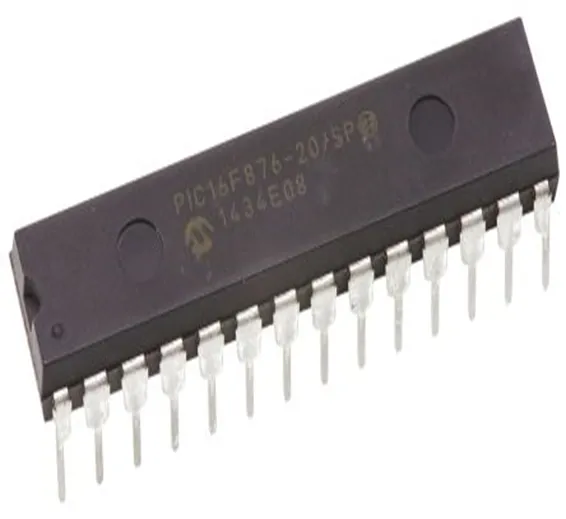

PIC16F876 Microcontroller
Microcontroller

PIC16F876 Microcontroller

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: DBS 181,IMP100,L10,Th4,KRT

Ask Price

Microcontroller Core Features: • High performance RISC CPU • Only 35 single word instructions to learn • All single cycle instructions except for program branches which are two cycle • Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle • Up to 8K x 14 words of FLASH Program Memory, Up to 368 x 8 bytes of Data Memory (RAM) Up to 256 x 8 bytes of EEPROM Data Memory • Pinout compatible to the PIC16C73B/74B/76/77 • Interrupt capability (up to 14 sources) • Eight level deep hardware stack • Direct, indirect and relative addressing modes • Power-on Reset (POR) • Power-up Timer (PWRT) and Oscillator Start-up Timer (OST) • Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation • Programmable code protection • Power saving SLEEP mode • Selectable oscillator options • Low power, high speed CMOS FLASH/EEPROM technology • Fully static design • In-Circuit Serial Programming(ICSP)via two pins • Single 5V In-Circuit Serial Programming capability • In-Circuit Debugging via two pins • Processor read/write access to program memory • Wide operating voltage range: 2.0V to 5.5V • High Sink/Source Current: 25 mA • Commercial, Industrial and Extended temperature ranges • Low-power consumption: - < 0.6 mA typical @ 3V, 4 MHz - 20 A typical @ 3V, 32 kHz - < 1 A typical standby current
