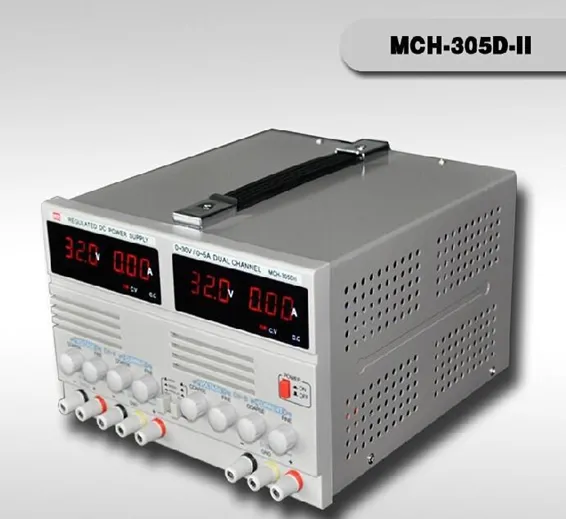

MCH-305D-II Adjustable DC Power Supply Adjustable Dual Power Supply
Power Supply

MCH-305D-II Adjustable DC Power Supply Adjustable Dual Power Supply

Condition: New
Availability: Out Of Stock
Advance Payment Only
Share:

SKU: TMD,Th,KRT

Rs.35000 Rs. 43750

MCH-305D-II Adjustable DC Power Supply Adjustable Dual Power Supply, Cheap power impedance, Buy Quality display clock directly from China display pole Suppliers:

Adjustable DC power supply multifunction digital display adjustable dual power MCH-305D-II (30V / 5A)

.

Adjustable DC power supply multifunction digital display adjustable dual power MCH-305D-II (30V / 5A)

.

  1. Package Size:20.0 * 43.0 * 20.0 ( cm )
  2. Gross Weight/Package:10.0 ( kg )

Item specifics

  1. Name: OEM
  2. Model Number:MCH-305D-II
  3. Current Type:DC
  4. Phase:dual
  5. Usage:adjustable DC power supply

Adjustable DC power supply multifunction digital display adjustable dual power MCH-305D-II (30V / 5A)

  1. GPS-3030DD linear DC power supply 0-30V 0-3A Single Output
  2. Constant voltage operation
  3. Rate of change rate of change of power <0.01% + 3mV
  4. Load regulation load rate of change <0.01% + 3mV (rated current <3A)
  5. <0.01% + 5mV (rated current> 3A)
  6. Ripple and noise noise <0.5mVrms 5Hz ~ 1MHz (rated current <3A)
  7. <1mVrms 5Hz ~ 1MHz (rated current> 3A)
  8. Transient response time <100S (50% change in the load, the minimum load is 0.5A)
  9. Temperature coefficient <300ppm / ° C
  10. Output range is continuously adjustable from 0 to rated voltage
  11. Constant current operation
  12. Adjusted rate power adjustment rate <0.2% + 3mA
  13. Load Regulation <0.2% + 3mA
  14. Ripple current <3mArms
  15. Output Range 0 to rating current continuously adjustable (Hi / Lo range switchable)
  16. Header
  17. Digital 3 1/2 digit 0.39 "LED display
  18. Accuracy + (0.5% of reading + 2 digits)
  19. Insulation
  20. Chassis and Terminal 20M or above (DC 500V)
  21. Chassis and power lines 30M or above (DC 500V)
  22. Use the power
  23. AC 100V / 120V / 220V / 240V + 10%, 50 / 60Hz
  24. Accessories
  25. Power cord x 1,
  26. Operating Manual x 1,
  27. Test line GTL-105 x 1 (<3A) or GTL-104 x 1 (<10A)
