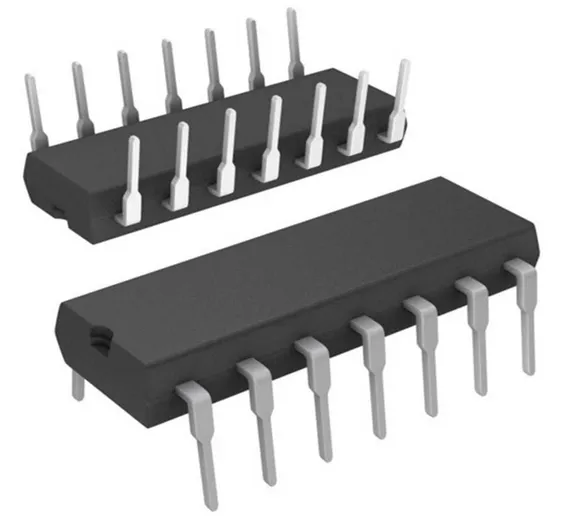

Hex Converter IC 74HC04

The 74HC04 provides six independent Hex inverters with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 6.0V.

Features:

1. Wide Supply Voltage Range from 2.0V to 6.0V
2. Sinks or Sources 4mA at VCC = 4.5V
3. CMOS Low Power Consumption • Schmitt Trigger Action at All Inputs
4. ESD Protection Exceeds JESD 22 ƒ200-V Machine Model (A115-A) ƒ2000-V Human Body Model (A114-A) ƒExceeds 1000-V Charged-Device Model (C101C)
5. Range of Package Options SO-14 and TSSOP-14
6. Totally Lead-Free & Fully RoHS Compliant
7. Halogen and Antimony Free. “Green” Device

Applications:

• A wide array of products such as:

1. ƒPCs, Networking, Notebooks, Netbooks ƒ
2. Computer Peripherals, Hard Drives, CD/DVD ROM
3. ƒTV, DVD, DVR, Set-Top Box

Datasheet:

74hc04 Datasheet

Buy 74HC04 Hex Converter IC at Pakistan's Best Online Shopping Store at cheap price. Here you get a wide range of Gate IC's. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all over Pakistan.

Package Include:

1x Hex Converter IC 74HC04

• SKU: RAWLIXHex
• /
• Category: Semiconductor Components & ICs
• /
• Tags: Hex Converter IC 74HC04
