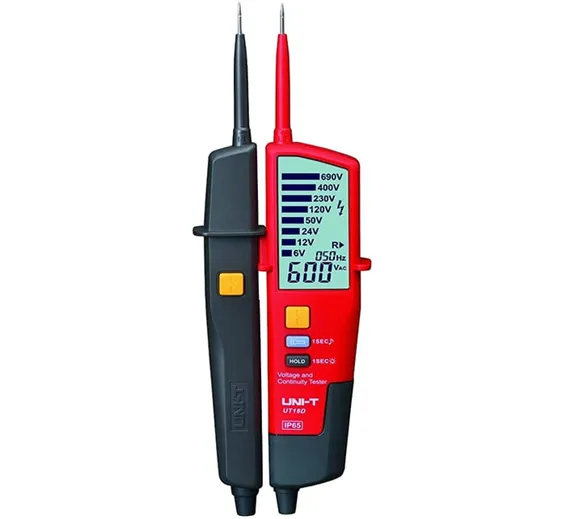

UNI T Voltage And Continuity Tester UT18D
UT18 series (UT18B / UT18C / UT18D) are designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This series is categorized as CAT IV 600V and meets IP65 standard. These voltage testers are perfect tools for electricians to quickly measure voltage levels in all environments. This series should NOT be used with 110V electrical systems.
SKU: TMD1,Th6,KRT
UNI T Voltage And Continuity Tester UT18D are designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This multifunction voltage tester is categorized as CAT IV 600V and meets IP65 standard. UT-18D AC DC tester automatic range perfect tool for electricians to quickly measure voltage levels in all environments. This series should NOT be used with 110V electrical systems.
Features Of Auto Range Volt Detector UNI-T UT18D:
- Auto power off, the conductor to be measured is greater than 12V
- Phase rotation test
- Continuity test with buzzer and LED indication
- Low battery indication and over-voltage prompt
- Flashlight
- Test live voltage without batteries
- Buzzer and silent modes available
- Auto range
- Polarity indication
Specifications Of Waterproof Voltage Detector AC DC Tester UT18D:
Specifications | Range | UT18D |
Voltage (V) | 6V | 5V±1V |
12V | 8V±1V | |
24V | 18V±2V | |
50V | 38V±4V | |
120V | 94V±8V | |
230V | 180V±14V | |
400V | 325V±15V | |
690V | 562V±24V | |
Phase rotation test | 57Vac~400Vac (3 phase) | √ |
Frequency: 50Hz~400Hz | ||
Single lead (L2) voltage detection |
Operating voltage: 100V~690V | √ |
Frequency: 50Hz~400Hz | ||
Continuity test | Resistance: 0Ω~100kΩ (+50% accuracy) | √ |
Beeper and LED light indication | ||
RCD test | Operating voltage: 230V (50Hz~400Hz) | √ |
Polarity detection | Positive & Negative | √ |
Self-inspection | All LED or LCD | √ |
Features | ||
Voltage indication | LCD | |
Exceed voltage | Voltage range: 713V~788V | √ |
Auto standby | Standby current<10μA | √ |
Slient mode | All range | √ |
Work light | √ | |
Low battery indication | Around 2.5V | √ |
LCD backlight | √ | |
LCD display (voltage) | 6V~690V | ±(1.5%+5) |
LCD display (Frequency) | 40Hz~400Hz | ±(3%+5) |
IP65 | √ | |
General Characteristics | ||
Power | 1.5V battery (R03)×2 | |
Display | 73.5mm x 35.5mm | |
Product color | Red and grey | |
Product net weight | 280g | |
Product size (W x H x D) | 272mm x 85mm x 31mm | |
Standard accessories | Batteries | |
Standard individual packing | Blister, English manual | |
Standard quantity per carton | 30pcs | |
Standard carton measurement | 440mm x 295mm x 455mm | |
Standard carton gross weight | 17.5kg |
Package includes:
- 1 x UNI-T UT18D Voltage and Continuity Tester
