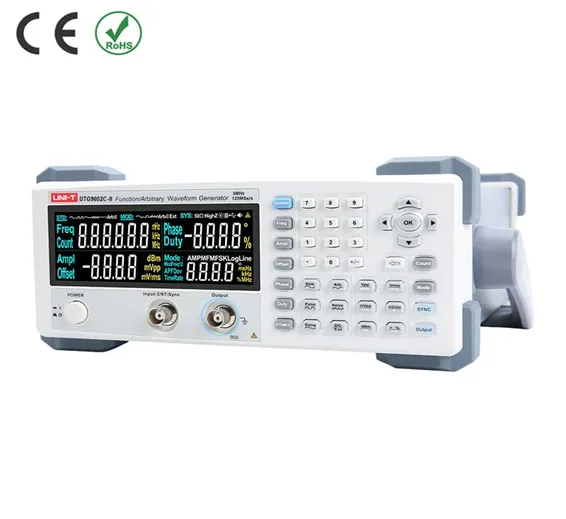

UNI T UTG9002C II Arbitrary Waveform Function Generator
Signal Generator

UNI T UTG9002C II Arbitrary Waveform Function Generator

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only
Share:

SKU: RAWLIXArb

Ask Price

The UNI-T UTG9002C-II Function/Arbitrary Waveform Generator uses the direct digital synthesis technology, which can generate accurate, stable, pure, and low-distortion waveform output, and the resolution is as low as 1μHz.2MHz Signal Generator can generate a sine wave, square wave, ramp wave, pulse wave, noise, DC, arbitrary waveform General Signal generator is an economical, high-performance, and multifunctional function/arbitrary waveform generator. With the convenient operation interface Digital Function Generator has excellent technical indicators, and humanized graphic display, this multi-purpose equipment can meet your learning and testing requirements and improve work efficiency. Multifunction Oscilloscope Generator has mane applications in Designing, testing, troubleshooting, and repairing electronic and electroacoustic devices, such as circuit and equipment testing in cellular and wireless systems, broadcasting, television, and radio systems; semiconductor component testing, etc.

Features Of UNI-T UT9002C-II General digital Signal Generator:

  • Sampling rate: 125MS/s
  • vertical resolution: 14bit
  • Output waveform: sine wave, square wave, ramp wave, pulse wave, noise, DC, arbitrary waveform
  • Sine wave / square wave output frequency range: 1μHz ~ 2MHz / 5MHz
  • Frequency resolution: 1μHz
  • Built-in 20 arbitrary waves, frequency range: 1μHz ~ 1MHz
  • Built-in 6-bit frequency meter: 100mHz ~ 100MHz
  • Analog-digital modulation type: AM, FM, PM, FSK
  • USB Device interface for remote control
  • EBTN ultra-black LCD screen
  • Power supply: 100~240VACrms, 50Hz/60Hz
  • Support NeptuneLab experimental system comprehensive test platform

Specifications Of 2Mhz Sine Square and Ramp Wave Function Generator:

  1. Channel: 1
  2. Bandwidth: 2Mhz
  3. Sampling rate: 125MS/s
  4. Vertical Resolution: 14 bits
  5. Waveform: Sine, square, pulse, ramp, noise, DC, arbitrary (20 sets inside )
  6. Sweep modes: Logarithmic, linear

Frequency Characteristics:

  1. Sine: 1μHz~2MHz
  2. Square: 1μHz~2MHz
  3. Ramp: 1μHz~200kHz
  4. Pulse: 1μHz~2MHz
  5. Arbitrary: 1μHz~1MHz
  6. Resolution: 1μHz
  7. Accuracy:
    • Within 90 days ± 50ppm
    • Within 1 year ± 100ppm
    • 18℃~28℃

Output Characteristics:

  1. Impedance: 50Ω/High Z
  2. Amplitude range: 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z)
  3. DC offset range: -5Vpp~5Vpp (50Ω) (AC+DC); -10Vpp~10Vpp (high Z) (AC+DC)
  4. Amplitude Resolution: 1mV

General Characteristics:

  1. Power: 100~240VAC, 50Hz/60Hz
  2. Display: EBTN LCD
  3. Color: White and grey
  4. Dimension: 265mm x 110mm x 320mm
  5. weight: 2.8kg

Package Include:

  • 1x signal generator
  • 1x USB interface cable
  • 1x power cord
  • 1x BNC cable with alligator clips
