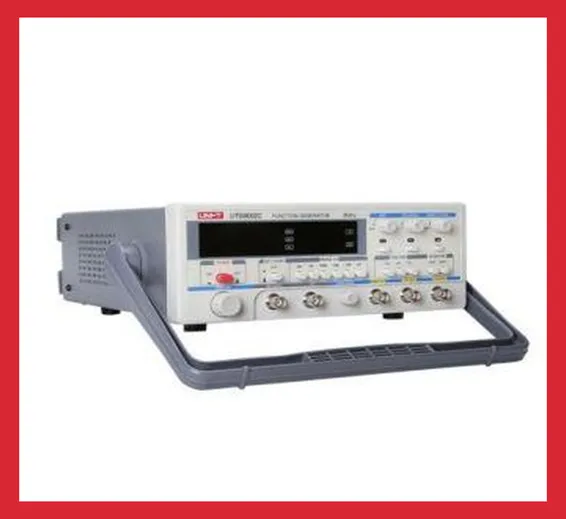

UTG 9000C series function generators can produce sine, square, triangle, pulse and saw tooth waveforms etc. The frequency range is wide and the highest value can be 10MHz. Manufactured by UNI-T, the DC level and duty ratio are adjustable. Some other features are VCF, TTL level output and display of output signal, amplitude and frequency at the same time. They can simply be used as a frequency meter in outside testing. With excellent amplitude and frequency characteristics and the rise time of square waveform≤50nS, the electrical specifications reach international standard ofthe same type products. They are exquisite and can be widely used in factories, schools and R & D institutions.
RangeModel UTG9002C Waveforms Sine, Square, Triangle, Pulse, Sawtooth etc. Amplitude
Range(no load) from 1mVpp to 20Vpp Accuracy ≤±5% (1KHz Triangle 20Vp-p) Resolultion 0.1mV Frequency
Rangefrom 0.2Hz to 2MHz Accuracy ≤±1% Resolultion 1mHz Output Power 2Wp-p Output Impedance 50Ω Attenuator 20dB + 40dB DC Offset from -10V to +10V Display Frequency: 4-digits-LED, Amplitude: 3-digits-LED Duty Cycle from 10% to 90% Distortion of Sine ≤2% Rise time of Square ≤50ns VCF 100:01:00
Rangefrom 0.2Hz to 2MHz Amplitude
Rangefrom 0.5Vp-p to 5Vp-p Input Impedance 10kΩ
Device CharacteristicsPower AC 220V，50Hz Product Color White and Gray Product Net Weight 2.5 Kg Product Size 320mm×240mm×100mm Standard Accessories BNC to Alligator Clips,Power Cord Standard Individual Packing Gift Box,English Manual Standard Quantity Per Carton 6 Pcs Standard Carton Measurement 660mm×410mm×600mm Standard Carton Cross Weight 18 Kg
1x Function generator device
