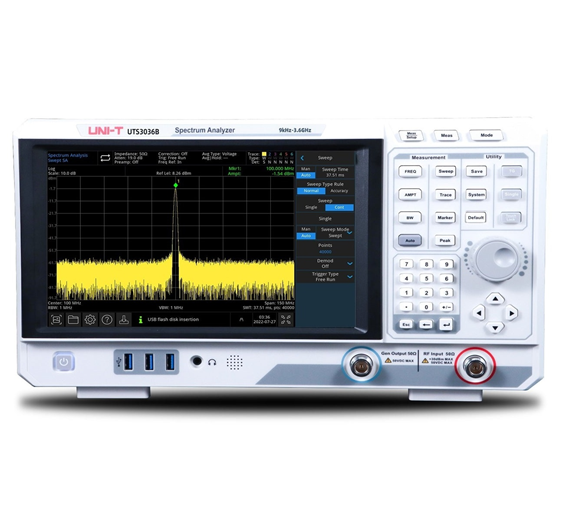

UNI-T UTS3036B 3.6GHz Performance Series Spectrum Analyzer
The UTS3000B series spectrum analyzer can measure frequencies up to 8.4GHz. It is a spectrum analyzer with wide frequency band coverage and superior performance. The series adopts mature all digital IF technology. It provides a variety of analysis functions, and up to 40001 scanning points , providing better help for your frequency domain analysis. This series of spectrum adopts a 10.1 inch large touch screen, which will bring you a better use experience. The UTS3000B series can be applied to functional/terminal/quality inspection tests in the electronics manufacturing industry, as well as wireless communication measurement, RF microwave courses, electromagnetic compatibility pre-scan, semiconductor measurement and many other application scenarios.
SKU: TCBOX88
UNI-T UTS3036B 3.6GHz Performance-Series Spectrum Analyzer
Your Precision RF Analysis Companion
In today's ever-evolving world of electronics and telecommunications, precision and versatility are paramount. The UNI-T UTS3036B 3.6GHz Performance-Series Spectrum Analyzer is here to empower electrical engineers with its versatile capabilities. With a frequency range of 9kHz to 3.6GHz, this instrument offers a wide array of benefits and applications for professionals in the field.
Precision in Signal Analysis
The UNI-T UTS3036B provides excellent selectivity, allowing for stronger signal resolution even in the presence of adjacent unequal amplitudes. This capability is invaluable in scenarios where precise signal separation and analysis are required, such as identifying interference sources in crowded frequency bands.
Enhanced Signal Detection
With the capacity to scan up to 40,001 sweep points, this spectrum analyzer delivers higher frequency resolution, making it easier to capture signals that may be challenging to detect. This feature is particularly useful in applications where identifying specific signals or troubleshooting complex RF environments is essential.
Unmatched Sensitivity for Weak Signals
Testing weaker signals can be challenging, as it often involves dealing with the noise floor of the spectrum analyzer itself. The UTS3036B series, with a Displayed Average Noise Level (DANL) as low as -161dBm, excels in sensitivity, allowing for effective testing of weak signals. This capability proves crucial in applications where signal strength is minimal, such as monitoring low-power transmissions or detecting subtle variations in signals.
Intuitive Operation with Multi-Touch HD Screen
The 10.1-inch multi-touch HD capacitive screen simplifies menu settings and supports various gesture operations like dragging, expanding, and zooming on the trace. This intuitive interface enhances user experience, ensuring quick and efficient operation in diverse settings, from the field to the laboratory.
Flexible Reference Options
The UTS3036B offers both internal and external reference source options. It can automatically switch to an external reference source when a 10MHz clock signal is detected from an external source, streamlining synchronization with other devices. This flexibility is advantageous in scenarios where precise synchronization is crucial, such as network timing applications.
Maintenance Made Easy
The inclusion of a removable dust filter ensures the longevity and reliability of the analyzer. By clearing dust from the air inlet, you can prevent short-circuits, burns, or fires caused by dust accumulation, ensuring uninterrupted performance over time.
Versatile Audio Capabilities
The presence of a 3.5mm Audio Jack and a built-in speaker enhances the instrument's versatility. It enables comprehensive signal analysis, facilitates troubleshooting of audio-related issues, and streamlines testing processes. This feature proves invaluable for electrical engineers working on audio applications.
Unlock Advanced Analysis with Optional Kit
For those seeking advanced capabilities, the UNI-T 3000B-AMK Advanced Measurement Kit offers an array of functions, including Channel Power, Time Domain Power, Occupied Bandwidth, Third-Order Intermodulation, Adjacent Channel Power, Spectrum Monitoring, Carrier-to-Noise Ratio, and Harmonic analysis. These functions are indispensable for in-depth signal analysis in various electrical engineering applications.
EMI Pre-compliance and Beyond
When combined with the UTS3000B-EMI option and the UTS-EMI01 near-field probes, the UTS3036B becomes a powerful tool for identifying and addressing EMI defects in advance. This capability shortens development cycles and reduces the cost of compliance testing, ultimately saving time and resources.
Enhanced Functionality with Tracking Generator Option
Adding the UTS3000-TG firmware upgrade option enhances your UTS3036B with a signal source, expanding its capabilities. This option is particularly beneficial when dealing with applications that require tracking signals for alignment, calibration, or RF component testing.
The UNI-T UTS3036B 3.6GHz Performance-Series Spectrum Analyzer offers a versatile solution for electrical engineers seeking precision, adaptability, and advanced functionality. Whether you're working with signal analysis, EMI compliance, or advanced measurements, this instrument empowers you to excel in your field. Unlock new horizons in electrical engineering – equip yourself with the UTS3036B today!
