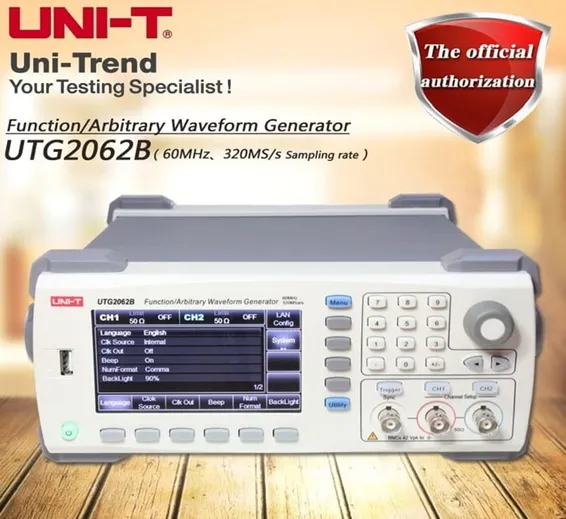

UNI-T UTG2062B - 2-channel arbitrary waveform generator DDS, with a sinusoidal signal generation band of 60 MHz, the sampling rate of a digital-to-analog converter: 320 MB / s, and memory capacity: up to 16M points, manufactured by UNI-T. The arbitrary signal generator can produce high precision, stable, pure, and low distortion signals; provide high-frequency square waves with quick rise and fall edges. Users can improve their working efficiency by using the multifunctional instrument of easy operated interface, competitive specifications, and humanized graphical display. Oscilloscope generator has much application in Designing, testing, troubleshooting, and repairing electronic and electroacoustic devices, such as circuit and equipment testing in cellular and wireless systems, broadcasting, television, and radio systems; semiconductor component testing, etc.
Features Of 2 channel Arbitrary Waveform Function generator UTG2062B:
- 1μHz full-band resolution
- 5MHz~30MHz pulse waveform, adjustable rise/fall time
- 14-bit/16-bit vertical resolution
- Two equivalent-performance channels
- Max arbitrary waveform length of 8k/16M points; 48/161
- Non-volatile waveforms storage
Specifications Of UNI-T UTG2062B General Oscilloscope Signal Generator:
- Channel: 2
- Bandwidth: 60Mhz
- Sampling rate: 320MS/s
- Vertical Resolution: 16 bit
- Waveform: Sine, square, pulse, ramp, noise, DC, arbitrary (20 sets inside )
- Sweep modes: Logarithmic, linear
Frequency Characteristics:
- Sine: 1μHz~60MHz
- Square: 1μHz~25MHz
- Ramp: 1μHz~3MHz
- Pulse: 1μHz~20MHz
- Arbitrary: 1μHz~3MHz
- Harmonic: 1μHz~30MHz
- Resolution: 1μHz
- Accuracy:
- ±0.5ppm 25℃
- First-year aging rate: 1ppm
- Temperature coefficient: ±0.5ppm/℃
Output Characteristics:
- Output standard waveform: Sine, square, ramp, triangle, pulse, noise, DC, arbitrary
- Amplitude range: 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z)
- Modulation types: -5Vpp~5Vpp (50Ω) (AC+DC); -10Vpp~10Vpp (high Z) (AC+DC)
- Amplitude Resolution: 1mV
General Characteristics:
- Power: 100~240VAC, 50Hz/60Hz
- Display: 4.3-inch TFT LCD, WVGA (480 x 272)
- Color: White and grey
- Dimension: 265mm x 110mm x 320mm
- weight: 3.2kg
Package Include:
- 1x signal generator
- 1x USB interface cable
- 1x power cord
- 1x BNC cable with alligator clips
