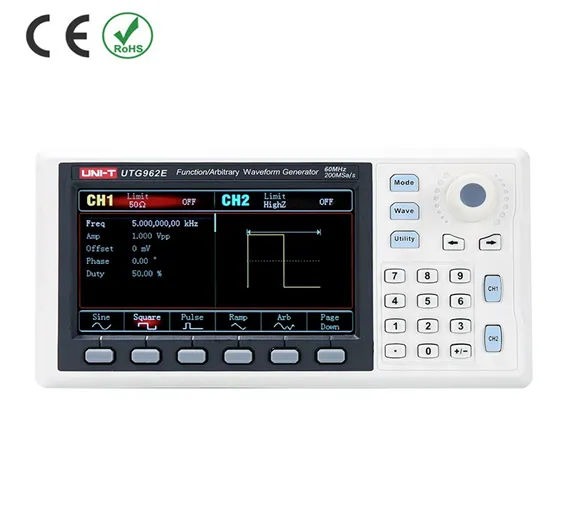

UTG962E Function/Arbitrary Waveform Generator
Signal Generator

UTG962E Function/Arbitrary Waveform Generator

Condition: New
Availability: In Stock
Advance Payment Only
Share:     Faceook Twitter
  • Output waveforms: Sine, square, pulse, ramp, noise, DC, arbitrary
  • Output frequency range: 1μHz-30MHz/60MHz
  • High-accuracy, broad-band 6 bit frequency counter, range: 100mHz~100MHz
  • Two equivalent-performance channels
  • 4.3 inches TFT LCD

SKU: TCBOX88

Rs.27000 Rs. 33750

Technical Specifications of UTG962E Function/Arbitrary Waveform Generator:

Specifications
Model UTG962E
Channel 2
Max frequency 60MHz
Sampling rate 200MS/s
Vertical resolution 14 bits
Waveforms Sine, square, pulse, ramp, noise, DC, arbitrary
Sweep modes Logarithmic, linear
Frequency Characteristics
Sine 1μHz~60MHz
Square 1μHz~20MHz
Ramp 1μHz~400kHz
Pulse 1μHz~20MHz
Arbitrary 1μHz~10MHz
Resolution 1μHz
Accuracy Within 90 days ± 50ppm
Within 1 year ± 100ppm
18℃~28℃
Output Characteristics
Impedance 50Ω/High Z
Amplitude range 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z)
DC offset range (AC+DC) ±5V (50Ω); ±10V  (high Z)
Amplitude resolution 1mV
General Characterisitics
Power 100~240VAC, 50Hz/60Hz
Display 4.3”TFT LCD (480×272)
Product color White and grey
Product net weight 0.33kg
Product size 172mm x 90mm x 68mm
Standard accessories USB interface cable, power cord, BNC cable with alligator clips
Standard individual packing Carton box
Standard quantity per carton 4pcs
Standard carton measurement 435mm x 360mm x 125mm
Standard carton gross weight 3.8kg
