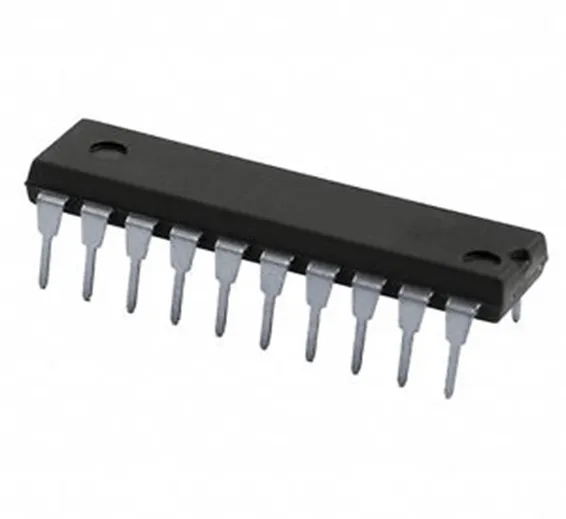

74LS688 8-bit magnitude comparators
Condition: New
Availability:
In Stock
Advance Payment Only
SKU: LS30,Th20,KRT
Rs.350
Rs. 438
The SN54/74LS682, 684, 688 are 8-bit magnitude comparators. These device types are designed to perform comparisons between two eight-bit binary or BCD words. All device types provide P = Q outputs and the LS682 and LS684 have P>Q outputs also. The LS682, LS684, and LS688 are totem pole devices. The LS682 has a 20 kΩ pullup resistor on the Q inputs for analog or switch data.
