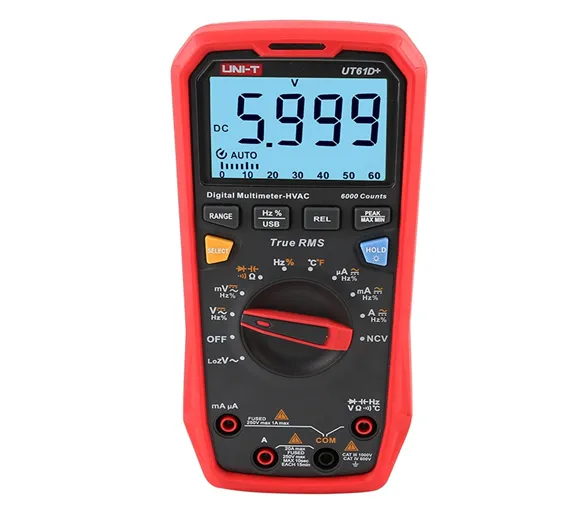

UT61D+ 1000V True RMS Digital Multimeter
Multimeters

UT61D+ 1000V True RMS Digital Multimeter

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only
Share:
  • UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC.
  • Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.

SKU: TCBOX88

Ask Price

Features of UT61D+ 1000V True RMS Digital Multimeter:

  • True RMS
  • Data hold/backlight
  • Max/Min/Relative mode
  • USB communication
  • Input protection
  • Diode/continuity test
  • NCV (audible/visual alarm)
  • LoZ ACV
  • Peak Hold

Technical Specifications of UT61D+ 1000V True RMS Digital Multimeter:

Specifications Range UT61D+
Safety ratings CAT III 1000V/CAT IV 600V
AC voltage (V) 1000V ±(1%+3)
DC voltage (V) 1000V ±(0.5%+3)
AC current (A) 20A ±(1.2%+5)
DC current (A) 20A ±(1%+2)
Resistance (Ω) 60MΩ ±(1%+2)
Capacitance (F) 60mF ±(3%+5)
Frequency (Hz) 10MHz ±(0.1%+4)
Duty cycle (%) 0.1%~99.9% ±(2%+5)
Temperature (℃/℉)  -40℃~1000℃ ±(1%+3)
 -40℉~1832℉ ±(1%+6)
Display count   6000
Bandwidth (Hz)   40Hz~1kHz
LoZ ACV
Peak Hold
Analog bar   31
General Characteristics
Power 1.5V battery (R03) x 4
Product net weight 350g
Product size 190mm x 90mm x 50mm
Standard accessories Battery, gold plated test leads, USB cable, temperature probe, English manual
Standard individual packing Gift box, cloth bag
Standard quantity per carton 20pcs
Standard carton measurement 480mm x 370mm x 365mm
Standard carton gross weight 15.2kg
Optional accessories Bluetooth/APP
